在西格玛光机透镜产品中，SLSQ系列石英平凸球面透镜形状简单且应用广泛。并且可以丰富细化外径尺寸和焦距，从而选择符合您的技术要求的Optosigma透镜
所属品牌： 日本OptoSigma
日本Optosigma推出了波段为350nm以下用的高激光损伤阈值的合成石英球面平凸透镜，以及适用于ArF（193nm）和KrF（248nm）的准分子激光用合成石英透镜，SLSQ-P,SLSQK-P系列，均可以用于成像领域和非成像领域。在sigma透镜中，SLSQ系列石英平凸球面透镜形状简单且应用广泛。并且可以丰富细化外径尺寸和焦距，从而选择符合您的技术要求的Optosigma透镜。
西格玛光机球面平凸透镜的相关信息：
- 承接定制非标尺寸或焦距的产品
- 承接定制镀特定波长的防反射膜。
- 另外备有校正了色差的消色差透镜（Optosigma透镜中的DLB系列）。
日本optosigma球面平凸透镜SLSQ-P/SLSQK-P的注意事项：
- SLSQ-P/SLSQK-P合成石英球面平凸透镜有色差，焦距随着波长变化。各波长的焦距请参考网页上的“焦距随波长变化特性数据”确认。
- 射入平凸透镜的光线有方向性。请务必从凸面一侧射入平行光。否则球差会变大，焦点光斑会变大，成像会变的模糊。
- 无镀膜产品因sigma透镜的正面和反面都会存在反射损失，所以透过率为90%左右。
西格玛光机合成石英平凸球面透镜SLSQ-P/SLSQK-P的特点：
|
材质 |
SLSQ：合成石英 SLSQK：准分子激光用合成石英 |
|
设计波长 |
546.1nm |
|
折射率 |
合成石英：ne=1.460 |
|
镀膜 |
无镀膜：型号末尾N 防反射膜：型号末尾NM,NIR1,NIR2。 |
|
激光损伤阈值 |
防反射膜: 4J/cm2 脉宽10ns，重复频率20Hz |
|
有效直径 |
外径的90%，有镀膜时为外径的85%。 |
|
表面质量 |
20-10 |

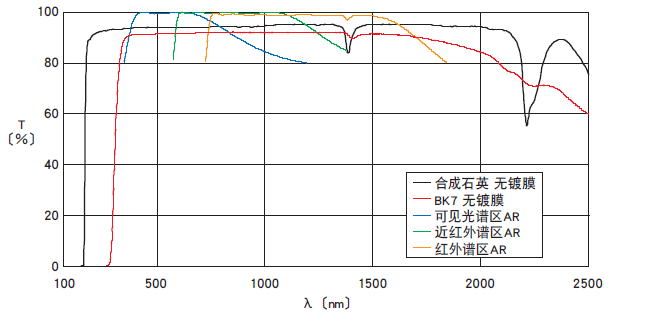

SigmaKoki合成石英球面平凸透镜的透过率波长特性（参考数据） T：透过率:
由以上曲线图可以看出，在所有的西格玛光机球面平凸透镜中，合成石英平凸球面透镜在200nm~2200nm的波长透过率较好，达到了90%左右。性能较为稳定。

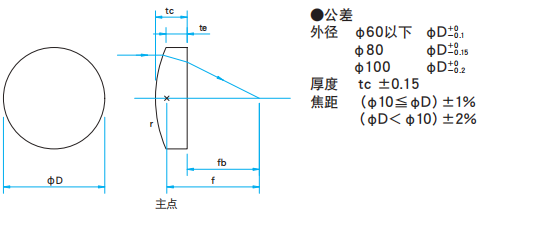

西格玛光机球面平凸透镜SLSQ-P/SLSQK-P的外形和尺寸图示：
SigmaKoKi SLSQ-P/SLSQK-P系列合成石英平凸球面透镜的规格参数表：
Φ5~Φ20mm 合成石英 SLSQ系列石英平凸球面透镜
|
型号 |
外径 φD |
焦距f |
边缘厚度te |
中心厚度tc |
后焦距fb |
曲率半径r |
偏心 |
|
SLSQ-05-08P |
φ5 |
8 |
1.6 |
2.5 |
6.3 |
3.68 |
＜3 |
|
SLSQ-05-09P |
φ5 |
9 |
1.4 |
2.3 |
7.6 |
4.14 |
＜3 |
|
SLSQ-05-10P |
φ5 |
10 |
1.4 |
2.1 |
8.6 |
4.60 |
＜3 |
|
SLSQ-05-12P |
φ5 |
12 |
1.3 |
1.9 |
10.7 |
5.52 |
＜3 |
|
SLSQ-05-15P |
φ5 |
15 |
1.2 |
1.7 |
13.8 |
6.90 |
＜3 |
|
SLSQ-05-20P |
φ5 |
20 |
1.2 |
1.5 |
19.0 |
9.20 |
＜3 |
|
SLSQ-05-30P |
φ5 |
30 |
1.1 |
1.3 |
29.1 |
13.80 |
＜3 |
|
SLSQ-06-08P |
φ6 |
8 |
1.0 |
2.5 |
6.3 |
3.68 |
＜3 |
|
SLSQ-06-10P |
φ6 |
10 |
1.0 |
2.1 |
8.6 |
4.60 |
＜3 |
|
SLSQ-06-12P |
φ6 |
12 |
1.0 |
1.9 |
10.7 |
5.52 |
＜3 |
|
SLSQ-06-15P |
φ6 |
15 |
1.0 |
1.7 |
13.8 |
6.90 |
＜3 |
|
SLSQ-06-20P |
φ6 |
20 |
1.0 |
1.5 |
19.0 |
9.20 |
＜3 |
|
SLSQ-06-25P |
φ6 |
25 |
1.0 |
1.4 |
24.0 |
11.50 |
＜3 |
|
SLSQ-06-30P |
φ6 |
30 |
1.0 |
1.3 |
29.1 |
13.80 |
＜3 |
|
SLSQ-07-10P |
φ7 |
10 |
2.2 |
3.8 |
7.4 |
4.60 |
＜3 |
|
SLSQ-07-12P |
φ7 |
12 |
2.0 |
3.2 |
9.8 |
5.52 |
＜3 |
|
SLSQ-07-15P |
φ7 |
15 |
1.8 |
2.8 |
13.1 |
6.90 |
＜3 |
|
SLSQ-07-20P |
φ7 |
20 |
1.7 |
2.4 |
18.3 |
9.20 |
＜3 |
|
SLSQ-07-30P |
φ7 |
30 |
1.6 |
2.1 |
28.6 |
13.80 |
＜3 |
|
SLSQ-07-40P |
φ7 |
40 |
1.6 |
1.9 |
38.7 |
18.40 |
＜3 |
|
SLSQ-07-50P |
φ7 |
50 |
1.6 |
1.9 |
48.7 |
23.00 |
＜3 |
|
SLSQ-08-10P |
φ8 |
10 |
1.5 |
3.8 |
7.4 |
4.60 |
＜3 |
|
SLSQ-08-12P |
φ8 |
12 |
1.5 |
3.2 |
9.8 |
5.52 |
＜3 |
|
SLSQ-08-15P |
φ8 |
15 |
1.5 |
2.8 |
13.1 |
6.90 |
＜3 |
|
SLSQ-08-20P |
φ8 |
20 |
1.5 |
2.4 |
18.3 |
9.20 |
＜3 |
|
SLSQ-08-25P |
φ8 |
25 |
1.5 |
2.2 |
23.5 |
11.50 |
＜3 |
|
SLSQ-08-30P |
φ8 |
30 |
1.5 |
2.1 |
28.6 |
13.80 |
＜3 |
|
SLSQ-10-15P |
φ10 |
15 |
2.0 |
4.1 |
12.2 |
6.90 |
＜1 |
|
SLSQ-10-20P |
φ10 |
20 |
2.0 |
3.5 |
17.6 |
9.20 |
＜1 |
|
SLSQ-10-25P |
φ10 |
25 |
2.0 |
3.1 |
22.8 |
11.50 |
＜1 |
|
SLSQ-10-30P |
φ10 |
30 |
2.0 |
2.9 |
28.0 |
13.80 |
＜1 |
|
SLSQ-10-40P |
φ10 |
40 |
2.0 |
2.7 |
38.2 |
18.40 |
＜1 |
|
SLSQ-10-50P |
φ10 |
50 |
2.0 |
2.6 |
48.3 |
23.00 |
＜1 |
|
SLSQ-10-60P |
φ10 |
60 |
2.0 |
2.5 |
58.3 |
27.60 |
＜1 |
|
SLSQ-10-70P |
φ10 |
70 |
2.0 |
2.4 |
68.4 |
32.20 |
＜1 |
|
SLSQ-10-80P |
φ10 |
80 |
2.0 |
2.3 |
78.4 |
36.8 |
＜1 |
|
SLSQ-10-100P |
φ10 |
100 |
2.0 |
2.3 |
98.4 |
46.00 |
＜1 |
|
SLSQ-12.7-15P |
φ12.7 |
15 |
2.0 |
6.2 |
10.8 |
6.90 |
＜1 |
|
SLSQ-12.7-20P |
φ12.7 |
20 |
2.0 |
4.5 |
16.9 |
9.20 |
＜1 |
|
SLSQ-12.7-25P |
φ12.7 |
25 |
2.0 |
3.9 |
22.3 |
11.50 |
＜1 |
|
SLSQ-12.7-40P |
φ12.7 |
40 |
2.0 |
3.1 |
37.9 |
18.40 |
＜1 |
|
SLSQ-12.7-50P |
φ12.7 |
50 |
2.0 |
2.9 |
48.0 |
23.00 |
＜1 |
|
SLSQ-15-20P |
φ15 |
20 |
2.0 |
5.9 |
16.0 |
9.20 |
＜1 |
|
SLSQ-15-25P |
φ15 |
25 |
2.0 |
4.8 |
21.7 |
11.50 |
＜1 |
|
SLSQ-15-30P |
φ15 |
30 |
2.0 |
4.2 |
27.1 |
13.80 |
＜1 |
|
SLSQ-15-40P |
φ15 |
40 |
2.0 |
3.6 |
37.5 |
18.40 |
＜1 |
|
SLSQ-15-50P |
φ15 |
50 |
2.0 |
3.3 |
47.8 |
23.00 |
＜1 |
|
SLSQ-15-60P |
φ15 |
60 |
2.0 |
3.0 |
57.9 |
27.9 |
＜1 |
|
SLSQ-15-70P |
φ15 |
70 |
2.0 |
2.9 |
68.0 |
32.20 |
＜1 |
|
SLSQ-15-80P |
φ15 |
80 |
2.0 |
2.8 |
78.1 |
36.80 |
＜1 |
|
SLSQ-15-90P |
φ15 |
90 |
2.0 |
2.7 |
88.2 |
41.40 |
＜1 |
|
SLSQ-15-100P |
φ15 |
100 |
2.0 |
2.6 |
98.3 |
46.00 |
＜1 |
|
SLSQ-20-25P |
φ20 |
25 |
2.0 |
7.8 |
19.6 |
11.50 |
＜1 |
|
SLSQ-20-30P |
φ20 |
30 |
2.0 |
6.3 |
25.7 |
13.80 |
＜1 |
|
SLSQ-20-40P |
φ20 |
40 |
2.0 |
5.0 |
36.6 |
18.40 |
＜1 |
|
SLSQ-20-50P |
φ20 |
50 |
2.0 |
4.3 |
47.1 |
23.00 |
＜1 |
|
SLSQ-20-60P |
φ20 |
60 |
2.0 |
3.9 |
57.3 |
27.60 |
＜1 |
|
SLSQ-20-70P |
φ20 |
70 |
2.0 |
3.6 |
67.5 |
32.20 |
＜1 |
|
SLSQ-20-80P |
φ20 |
80 |
2.0 |
3.4 |
77.7 |
36.80 |
＜1 |
|
SLSQ-20-90P |
φ20 |
90 |
2.0 |
3.2 |
87.8 |
41.40 |
＜1 |
|
SLSQ-20-100P |
φ20 |
100 |
2.0 |
3.1 |
97.9 |
46.00 |
＜1 |
|
SLSQ-20-120P |
φ20 |
120 |
2.0 |
2.9 |
118.0 |
55.20 |
＜1 |
|
SLSQ-20-150P |
φ20 |
150 |
2.0 |
2.7 |
148.1 |
69.00 |
＜1 |
|
SLSQ-20-170P |
φ20 |
170 |
2.0 |
2.6 |
168.2 |
78.20 |
＜1 |
|
SLSQ-20-200P |
φ20 |
200 |
2.0 |
2.5 |
198.3 |
92.00 |
＜1 |
Φ25~Φ30mm 合成石英 SLSQ系列石英平凸球面平凸透镜
|
型号 |
外径 φD |
焦距f |
边缘厚度te |
中心厚度tc |
后焦距fb |
曲率半径r |
偏心 |
|
SLSQ-25-30P |
φ25 |
30 |
2.0 |
10.0 |
23.2 |
13.80 |
＜1 |
|
SLSQ-25-35P |
φ25 |
35 |
2.0 |
8.0 |
29.6 |
16.10 |
＜1 |
|
SLSQ-25-40P |
φ25 |
40 |
2.0 |
6.9 |
35.3 |
18.40 |
＜1 |
|
SLSQ-25-50P |
φ25 |
50 |
2.0 |
5.7 |
46.1 |
23.00 |
＜1 |
|
SLSQ-25-60P |
φ25 |
60 |
2.0 |
5.0 |
56.6 |
27.60 |
＜1 |
|
SLSQ-25-70P |
φ25 |
70 |
2.0 |
4.5 |
66.9 |
32.20 |
＜1 |
|
SLSQ-25-80P |
φ25 |
80 |
2.0 |
4.2 |
77.1 |
36.80 |
＜1 |
|
SLSQ-25-90P |
φ25 |
90 |
2.0 |
3.9 |
87.3 |
41.40 |
＜1 |
|
SLSQ-25-100P |
φ25 |
100 |
2.0 |
3.7 |
97.4 |
46.00 |
＜1 |
|
SLSQ-25-120P |
φ25 |
120 |
2.0 |
3.4 |
117.6 |
55.20 |
＜1 |
|
SLSQ-25-150P |
φ25 |
150 |
2.0 |
3.1 |
147.8 |
69.00 |
＜1 |
|
SLSQ-25-170P |
φ25 |
170 |
2.0 |
3.0 |
167.9 |
78.20 |
＜1 |
|
SLSQ-25-200P |
φ25 |
200 |
2.0 |
2.9 |
198.0 |
92.00 |
＜1 |
|
SLSQ-25-220P |
φ25 |
220 |
2.0 |
2.8 |
218.1 |
101.20 |
＜1 |
|
SLSQ-25-250P |
φ25 |
250 |
2.0 |
2.7 |
248.2 |
115.00 |
＜1 |
|
SLSQ-25.4-30P |
φ25.4 |
30 |
1.6 |
10.0 |
23.2 |
13.80 |
＜1 |
|
SLSQ-25.4-35P |
φ25.4 |
35 |
1.8 |
8.0 |
29.5 |
16.10 |
＜1 |
|
SLSQ-25.4-40P |
φ25.4 |
40 |
1.8 |
6.9 |
35.3 |
18.40 |
＜1 |
|
SLSQ-25.4-50P |
φ25.4 |
50 |
1.9 |
5.7 |
46.1 |
23.00 |
＜1 |
|
SLSQ-25.4-60P |
φ25.4 |
60 |
1.9 |
5.0 |
56.6 |
27.60 |
＜1 |
|
SLSQ-25.4-70P |
φ25.4 |
70 |
1.9 |
4.5 |
66.9 |
32.20 |
＜1 |
|
SLSQ-25.4-80P |
φ25.4 |
80 |
1.9 |
4.2 |
77.1 |
36.80 |
＜1 |
|
SLSQ-25.4-90P |
φ25.4 |
90 |
1.9 |
3.9 |
87.3 |
41.40 |
＜1 |
|
SLSQ-25.4-100P |
φ25.4 |
100 |
1.9 |
3.7 |
97.5 |
46.00 |
＜1 |
|
SLSQ-25.4-150P |
φ25.4 |
150 |
1.9 |
3.1 |
147.9 |
69.00 |
＜1 |
|
SLSQ-25.4-200P |
φ25.4 |
200 |
1.9 |
2.9 |
198.0 |
92.00 |
＜1 |
|
SLSQ-25.4-250P |
φ25.4 |
250 |
1.9 |
2.7 |
248.2 |
115.00 |
＜1 |
|
SLSQ-25.4-300P |
φ25.4 |
300 |
1.9 |
2.5 |
298.3 |
138.00 |
＜3 |
|
SLSQ-25.4-400P |
φ25.4 |
400 |
1.9 |
2.3 |
398.4 |
184.00 |
＜3 |
|
SLSQ-25.4-500P |
φ25.4 |
500 |
1.9 |
2.3 |
498.0 |
230.00 |
＜3 |
|
SLSQ-25.4-1000P |
φ25.4 |
1000 |
1.9 |
2.1 |
998.6 |
460.00 |
＜3 |
|
SLSQ-30-35P |
φ30 |
35 |
2.0 |
12.3 |
26.6 |
16.10 |
＜1 |
|
SLSQ-30-40P |
φ30 |
40 |
2.0 |
9.7 |
33.3 |
18.40 |
＜1 |
|
SLSQ-30-50P |
φ30 |
50 |
2.0 |
7.6 |
44.8 |
23.00 |
＜1 |
|
SLSQ-30-60P |
φ30 |
60 |
2.0 |
6.4 |
55.6 |
27.60 |
＜1 |
|
SLSQ-30-70P |
φ30 |
70 |
2.0 |
5.7 |
66.1 |
32.20 |
＜1 |
|
SLSQ-30-80P |
φ30 |
80 |
2.0 |
5.2 |
76.4 |
36.80 |
＜1 |
|
SLSQ-30-90P |
φ30 |
90 |
2.0 |
4.8 |
86.7 |
41.40 |
＜1 |
|
SLSQ-30-100P |
φ30 |
100 |
2.0 |
4.5 |
96.9 |
46.00 |
＜1 |
|
SLSQ-30-120P |
φ30 |
120 |
2.0 |
4.1 |
117.2 |
55.20 |
＜1 |
|
SLSQ-30-150P |
φ30 |
150 |
2.0 |
3.7 |
147.5 |
69.50 |
＜1 |
|
SLSQ-30-170P |
φ30 |
170 |
2.0 |
3.5 |
167.6 |
78.20 |
＜1 |
|
SLSQ-30-200P |
φ30 |
200 |
2.0 |
3.2 |
197.8 |
92.00 |
＜1 |
|
SLSQ-30-220P |
φ30 |
220 |
2.0 |
3.1 |
217.9 |
101.20 |
＜1 |
|
SLSQ-30-250P |
φ30 |
250 |
2.0 |
3.0 |
248.0 |
115.00 |
＜1 |
|
SLSQ-30-300P |
φ30 |
300 |
2.0 |
2.8 |
298.1 |
138.00 |
＜1 |
|
SLSQ-30-350P |
φ30 |
350 |
2.0 |
2.7 |
348.2 |
161.00 |
＜3 |
|
SLSQ-30-400P |
φ30 |
400 |
2.0 |
2.6 |
398.2 |
184.00 |
＜3 |
|
SLSQ-30-450P |
φ30 |
450 |
2.0 |
2.5 |
448.3 |
207.00 |
＜3 |
|
SLSQ-30-500P |
φ30 |
500 |
2.0 |
2.5 |
498.3 |
230.00 |
＜3 |
|
SLSQ-30-600P |
φ30 |
600 |
2.0 |
2.4 |
598.4 |
276.00 |
＜3 |
|
SLSQ-30-700P |
φ30 |
700 |
2.0 |
2.4 |
698.4 |
322.00 |
＜3 |
|
SLSQ-30-800P |
φ30 |
800 |
2.0 |
2.3 |
798.4 |
368.00 |
＜3 |
|
SLSQ-30-900P |
φ30 |
900 |
2.0 |
2.3 |
898.4 |
414.00 |
＜3 |
|
SLSQ-30-1000P |
φ30 |
1000 |
2.0 |
2.2 |
998.5 |
460.00 |
＜3 |
|
SLSQ-30-1200P |
φ30 |
1200 |
2.0 |
2.2 |
1198.5 |
552.00 |
＜3 |
|
SLSQ-30-1500P |
φ30 |
1500 |
2.0 |
2.2 |
1498.5 |
690.00 |
＜3 |
|
SLSQ-30-2000P |
φ30 |
2000 |
2.0 |
2.1 |
1998.5 |
920.00 |
＜3 |
|
SLSQ-30-2500P |
φ30 |
2500 |
2.0 |
2.1 |
2498.6 |
1150.00 |
＜3 |
|
SLSQ-30-3000P |
φ30 |
3000 |
2.0 |
2.1 |
2998.6 |
1380.00 |
＜3 |
|
SLSQ-30-4000P |
φ30 |
4000 |
2.0 |
2.1 |
3998.6 |
1840.00 |
＜3 |
|
SLSQ-30-5000P |
φ30 |
5000 |
2.0 |
2.1 |
4998.6 |
2300.00 |
＜3 |
Φ40~Φ50.8mm 合成石英 SLSQ系列石英平凸球面透镜
|
型号 |
外径 φD |
焦距f |
边缘厚度te |
中心厚度tc |
后焦距fb |
曲率半径r |
偏心 |
|
SLSQ-40-50P |
φ40 |
50 |
2.0 |
13.6 |
40.7 |
23.00 |
＜1 |
|
SLSQ-40-60P |
φ40 |
60 |
2.0 |
10.6 |
52.8 |
27.60 |
＜1 |
|
SLSQ-40-70P |
φ40 |
70 |
2.0 |
9.0 |
63.9 |
32.20 |
＜1 |
|
SLSQ-40-80P |
φ40 |
80 |
2.0 |
7.9 |
74.6 |
36.80 |
＜1 |
|
SLSQ-40-90P |
φ40 |
90 |
2.0 |
7.2 |
85.1 |
41.40 |
＜1 |
|
SLSQ-40-100P |
φ40 |
100 |
2.0 |
6.6 |
95.5 |
46.00 |
＜1 |
|
SLSQ-40-120P |
φ40 |
120 |
2.0 |
5.8 |
116.1 |
55.20 |
＜1 |
|
SLSQ-40-150P |
φ40 |
150 |
2.0 |
5.0 |
146.6 |
69.00 |
＜1 |
|
SLSQ-40-170P |
φ40 |
170 |
2.0 |
4.6 |
166.8 |
78.20 |
＜1 |
|
SLSQ-40-200P |
φ40 |
200 |
2.0 |
4.2 |
197.1 |
92.00 |
＜1 |
|
SLSQ-40-220P |
φ40 |
220 |
2.0 |
4.0 |
217.3 |
101.20 |
＜1 |
|
SLSQ-40-250P |
φ40 |
250 |
2.0 |
3.8 |
247.4 |
115.00 |
＜1 |
|
SLSQ-40-300P |
φ40 |
300 |
2.0 |
3.5 |
297.6 |
138.00 |
＜1 |
|
SLSQ-40-350P |
φ40 |
350 |
2.0 |
3.2 |
347.8 |
161.00 |
＜1 |
|
SLSQ-40-400P |
φ40 |
400 |
2.0 |
3.1 |
397.9 |
184.00 |
＜1 |
|
SLSQ-40-450P |
φ40 |
450 |
2.0 |
3.0 |
448.0 |
207.00 |
＜3 |
|
SLSQ-40-500P |
φ40 |
500 |
2.0 |
2.9 |
498.0 |
230.00 |
＜3 |
|
SLSQ-50-70P |
φ50 |
70 |
3.0 |
14.9 |
59.8 |
32.20 |
＜1 |
|
SLSQ-50-80P |
φ50 |
80 |
3.0 |
12.8 |
71.2 |
36.80 |
＜1 |
|
SLSQ-50-90P |
φ50 |
90 |
3.0 |
11.4 |
82.2 |
41.40 |
＜1 |
|
SLSQ-50-100P |
φ50 |
100 |
3.0 |
10.4 |
92.9 |
46.00 |
＜1 |
|
SLSQ-50-120P |
φ50 |
120 |
3.0 |
9.0 |
113.8 |
55.20 |
＜1 |
|
SLSQ-50-150P |
φ50 |
150 |
3.0 |
7.7 |
144.7 |
69.00 |
＜1 |
|
SLSQ-50-170P |
φ50 |
170 |
3.0 |
7.1 |
165.1 |
78.20 |
＜1 |
|
SLSQ-50-200P |
φ50 |
200 |
3.0 |
6.5 |
195.6 |
92.00 |
＜1 |
|
SLSQ-50-220P |
φ50 |
220 |
3.0 |
6.1 |
215.8 |
101.20 |
＜1 |
|
SLSQ-50-250P |
φ50 |
250 |
3.0 |
5.8 |
246.1 |
115.00 |
＜1 |
|
SLSQ-50-300P |
φ50 |
300 |
3.0 |
5.3 |
296.4 |
138.00 |
＜1 |
|
SLSQ-50-350P |
φ50 |
350 |
3.0 |
5.0 |
346.6 |
161.00 |
＜1 |
|
SLSQ-50-400P |
φ50 |
400 |
3.0 |
4.7 |
396.8 |
184.00 |
＜1 |
|
SLSQ-50-450P |
φ50 |
450 |
3.0 |
4.5 |
446.9 |
207.00 |
＜1 |
|
SLSQ-50-500P |
φ50 |
500 |
3.0 |
4.4 |
497.0 |
230.00 |
＜1 |
|
SLSQ-50-600P |
φ50 |
600 |
3.0 |
4.1 |
597.2 |
276.00 |
＜3 |
|
SLSQ-50-700P |
φ50 |
700 |
3.0 |
4.0 |
697.3 |
322.00 |
＜3 |
|
SLSQ-50-800P |
φ50 |
800 |
3.0 |
3.9 |
797.4 |
368.00 |
＜3 |
|
SLSQ-50-900P |
φ50 |
900 |
3.0 |
3.8 |
897.4 |
414.00 |
＜3 |
|
SLSQ-50-1000P |
φ50 |
1000 |
3.0 |
3.7 |
997.5 |
460.00 |
＜3 |
|
SLSQ-50-1200P |
φ50 |
1200 |
3.0 |
3.6 |
1197.6 |
552.00 |
＜3 |
|
SLSQ-50-1500P |
φ50 |
1500 |
3.0 |
3.5 |
1497.6 |
690.00 |
＜3 |
|
SLSQ-50-2000P |
φ50 |
2000 |
3.0 |
3.3 |
1997.7 |
920.00 |
＜3 |
|
SLSQ-50-2500P |
φ50 |
2500 |
3.0 |
3.3 |
2497.8 |
1150.00 |
＜3 |
|
SLSQ-50-3000P |
φ50 |
3000 |
3.0 |
3.2 |
2997.8 |
1380.00 |
＜3 |
|
SLSQ-50-4000P |
φ50 |
4000 |
3.0 |
3.2 |
3997.8 |
1840.00 |
＜3 |
|
SLSQ-50-5000P |
φ50 |
5000 |
3.0 |
3.1 |
4997.9 |
2300.00 |
＜3 |
|
SLSQ-50.8-70P |
φ50.8 |
70 |
2.5 |
14.9 |
59.8 |
32.20 |
＜1 |
|
SLSQ-50.8-80P |
φ50.8 |
80 |
2.6 |
12.8 |
71.2 |
36.80 |
＜1 |
|
SLSQ-50.8-90P |
φ50.8 |
90 |
2.7 |
11.4 |
82.2 |
41.40 |
＜1 |
|
SLSQ-50.8-100P |
φ50.8 |
100 |
2.8 |
10.4 |
92.9 |
46.00 |
＜1 |
|
SLSQ-50.8-120P |
φ50.8 |
120 |
2.8 |
9.0 |
113.8 |
55.20 |
＜1 |
|
SLSQ-50.8-150P |
φ50.8 |
150 |
2.9 |
7.7 |
144.7 |
69.00 |
＜1 |
|
SLSQ-50.8-170P |
φ50.8 |
170 |
2.9 |
7.1 |
165.1 |
78.20 |
＜1 |
|
SLSQ-50.8-200P |
φ50.8 |
200 |
2.9 |
6.5 |
195.6 |
92.00 |
＜1 |
|
SLSQ-50.8-250P |
φ50.8 |
250 |
2.9 |
5.7 |
246.1 |
115.00 |
＜1 |
|
SLSQ-50.8-300P |
φ50.8 |
300 |
2.9 |
5.3 |
296.4 |
138.00 |
＜1 |
|
SLSQ-50.8-400P |
φ50.8 |
400 |
2.9 |
4.7 |
396.8 |
184.00 |
＜1 |
|
SLSQ-50.8-500P |
φ50.8 |
500 |
3.0 |
4.4 |
497.0 |
230.00 |
＜1 |
|
SLSQ-50.8-1000P |
φ50.8 |
1000 |
3.0 |
3.7 |
997.5 |
460.00 |
＜3 |
Φ60~Φ100mm 合成石英 SLSQ石英球面平凸透镜
|
型号 |
外径 φD |
焦距f |
边缘厚度te |
中心厚度tc |
后焦距fb |
曲率半径r |
偏心 |
|
SLSQ-60-80P |
φ60 |
80 |
3.0 |
18.5 |
67.3 |
36.80 |
＜1 |
|
SLSQ-60-90P |
φ60 |
90 |
3.0 |
15.9 |
79.1 |
41.40 |
＜1 |
|
SLSQ-60-100P |
φ60 |
100 |
3.0 |
14.1 |
90.3 |
46.00 |
＜1 |
|
SLSQ-60-120P |
φ60 |
120 |
3.0 |
11.9 |
111.9 |
55.20 |
＜1 |
|
SLSQ-60-150P |
φ60 |
150 |
3.0 |
9.9 |
143.2 |
69.00 |
＜1 |
|
SLSQ-60-170P |
φ60 |
170 |
3.0 |
9.0 |
163.8 |
78.20 |
＜1 |
|
SLSQ-60-200P |
φ60 |
200 |
3.0 |
8.0 |
194.5 |
92.00 |
＜1 |
|
SLSQ-60-220P |
φ60 |
220 |
3.0 |
7.5 |
214.8 |
101.20 |
＜1 |
|
SLSQ-60-250P |
φ60 |
250 |
3.0 |
7.0 |
245.2 |
115.00 |
＜1 |
|
SLSQ-60-300P |
φ60 |
300 |
3.0 |
6.3 |
295.7 |
138.00 |
＜1 |
|
SLSQ-60-350P |
φ60 |
350 |
3.0 |
5.8 |
346.0 |
161.00 |
＜1 |
|
SLSQ-60-400P |
φ60 |
400 |
3.0 |
5.5 |
396.3 |
184.00 |
＜1 |
|
SLSQ-60-450P |
φ60 |
450 |
3.0 |
5.2 |
446.5 |
207.00 |
＜1 |
|
SLSQ-60-500P |
φ60 |
500 |
3.0 |
5.0 |
496.6 |
230.00 |
＜1 |
|
SLSQ-100-200P |
φ100 |
200 |
3.0 |
17.8 |
187.8 |
92.00 |
＜1 |
|
SLSQ-100-250P |
φ100 |
250 |
3.0 |
14.4 |
240.1 |
115.00 |
＜1 |
|
SLSQ-100-300P |
φ100 |
300 |
3.0 |
12.4 |
291.5 |
138.00 |
＜1 |
|
SLSQ-100-350P |
φ100 |
350 |
3.0 |
11.0 |
342.5 |
161.00 |
＜1 |
|
SLSQ-100-400P |
φ100 |
400 |
3.0 |
9.9 |
393.2 |
184.00 |
＜1 |
|
SLSQ-100-500P |
φ100 |
500 |
3.0 |
8.5 |
494.2 |
230.00 |
＜1 |
|
SLSQ-100-600P |
φ100 |
600 |
3.0 |
7.6 |
594.8 |
276.00 |
＜1 |
|
SLSQ-100-700P |
φ100 |
700 |
3.0 |
6.9 |
695.3 |
322.00 |
＜1 |
|
SLSQ-100-800P |
φ100 |
800 |
3.0 |
6.4 |
795.6 |
368.00 |
＜1 |
|
SLSQ-100-1000P |
φ100 |
1000 |
3.0 |
5.7 |
995.1 |
460.00 |
＜1 |
Φ30~50mm 准分子合成石英 SLSQ石英球面平凸透镜
|
型号 |
外径 φD |
焦距f |
边缘厚度te |
中心厚度tc |
后焦距fb |
曲率半径r |
偏心 |
|
SLSQK-30-40P |
φ30 |
40 |
2.0 |
9.7 |
33.3 |
18.40 |
＜1 |
|
SLSQK-30-50P |
φ30 |
50 |
2.0 |
7.6 |
44.8 |
23.00 |
＜1 |
|
SLSQK-30-60P |
φ30 |
60 |
2.0 |
6.4 |
55.6 |
27.60 |
＜1 |
|
SLSQK-30-80P |
φ30 |
80 |
2.0 |
5.2 |
76.4 |
36.80 |
＜1 |
|
SLSQK-30-100P |
φ30 |
100 |
2.0 |
4.5 |
96.9 |
46.00 |
＜1 |
|
SLSQK-30-150P |
φ30 |
150 |
2.0 |
3.7 |
147.5 |
69.00 |
＜1 |
|
SLSQK-30-200P |
φ30 |
200 |
2.0 |
3.2 |
197.8 |
92.00 |
＜1 |
|
SLSQK-30-300P |
φ30 |
300 |
2.0 |
2.8 |
298.1 |
138.00 |
＜1 |
|
SLSQK-50-70P |
φ50 |
70 |
3.0 |
14.9 |
59.8 |
32.20 |
＜1 |
|
SLSQK-50-100P |
φ50 |
100 |
3.0 |
10.4 |
92.9 |
46.00 |
＜1 |
|
SLSQK-50-150P |
φ50 |
150 |
3.0 |
7.7 |
144.7 |
69.00 |
＜1 |
|
SLSQK-50-200P |
φ50 |
200 |
3.0 |
6.5 |
195.6 |
92.00 |
＜1 |
|
SLSQK-50-300P |
φ50 |
300 |
3.0 |
5.3 |
296.4 |
138.00 |
＜1 |
|
SLSQK-50-400P |
φ50 |
400 |
3.0 |
4.7 |
396.8 |
184.00 |
＜1 |
|
SLSQK-50-500P |
φ50 |
500 |
3.0 |
4.4 |
497.0 |
230.00 |
＜1 |
200/308/400消色差透镜
紫外消色差聚焦透镜是NA为0.1以下的透镜，对准直激光成像后的焦点光斑直径几乎接近衍射极限。没有使用吸收紫外光的玻璃或粘接剂，具有良好的耐光性。
查看详细
可见光气隙消色差聚焦双合透镜
可见光气隙消色差聚焦透镜不使用胶合透镜，而使用空气隙型消色差的聚光透镜。可以嵌入激光加工机械中，使用机内的532nm高输出激光进行同轴照明，作为聚光透镜使用。通过光学优化设计，校正了以532nm为中心的宽带范围内色差。
查看详细
ETL/EDL/NEDL准分子激光空气隙透镜
准分子激光空气隙透镜是在紫外光谱区域有高透过率的合成石英透镜构成的紫外激光用聚光透镜。没有使用吸收紫外光的玻璃或粘着剂，所以耐光性很好。248nm透镜由2枚或3枚球面透镜的组成，校正了球差和慧差。
查看详细
西格玛光机非球面平凸透镜
把平凸透镜的凸面改成非球面形状，可制作球差小的短焦距透镜，也就是OptoSigma非球面平凸透镜。西格玛光机非球面平凸透镜常被用于汇聚照明光，或准直点光源。
查看详细
