在西格玛光机球面双凸透镜中，SLB-P平凹球面透镜在200nm~2200nm的波长透过率较好，达到了90%左右。在optosigma透镜中，SLB-P球面双凸透镜性能较为稳定。
所属品牌： 日本OptoSigma
日本SigmaKoki推出了波段为可见光到近红外用的BK7材料的SLB-P系列球面双凸透镜。可以用于扩散准直激光，也可以与凸透镜组合在一起，用于扩大光束直径，扩大照明光的照明面积。在sigma透镜中，SLB-P系列球面双凸透镜形状简单且应用广泛。并且可以丰富细化外径尺寸和焦距，从而选择符合您的技术要求的Optosigma透镜。
西格玛光机BK7球面平凹透镜SLB-N的特点：
|
材质 |
SLB-B：BK7玻璃材料 |
|
设计波长 |
546.1nm |
|
折射率 |
BK7：ne=1.519 |
|
镀膜 |
无镀膜：型号末尾N 防反射膜：型号末尾NM,NIR1,NIR2。 |
|
激光损伤阈值 |
防反射膜: 4J/cm2 脉宽10ns，重复频率20Hz |
|
有效直径 |
外径的90%，有镀膜时为外径的85%。 |
|
表面质量 |
20-10 |

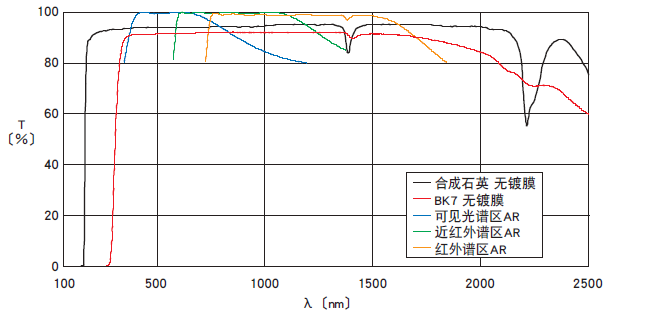

SigmaKoki合成石英球面平凸透镜的透过率波长特性（参考数据） T：透过率:
由以上曲线图可以看出，在西格玛光机球面双凸透镜中，SLB-P平凹球面透镜在200nm~2200nm的波长透过率较好，达到了90%左右。在optosigma透镜中，SLB-P球面双凸透镜性能较为稳定。

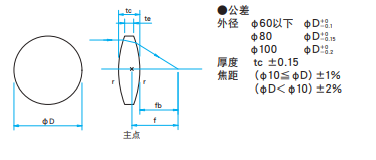

西格玛光机球面双凸透镜SLB-B-P的外形和尺寸图示：
西格玛光机球面双凸透镜的相关信息：
- 承接定制非标尺寸或焦距的Optosigma透镜。
- 也承接制造无镀膜透镜上蒸镀特定波长的防反射膜的BK7双凸透镜。
日本optosigma球面双凸透镜SLB-N的注意事项：
- 凹透镜不能单独聚集光，也不能成实像。需要和凸透镜一起组合使用。
- 球面平凹透镜有色差，焦距随波长变化，各个波长的焦距请参考网页上的“焦距随着波长变化特性的数据”确认。
- 射入optosigma平凹透镜的光线有方向性。请务必从凹面一侧射入平行光，否则球差会变大，光学系统的光学性能会下降。
- 使用高能量的脉冲激光时，由于凹面的反射光，在光路上聚积成焦点光斑后可能会出现闪光。在使用脉冲激光这种特殊情况时，请从平面一侧射入激光。
- 由于无镀膜透镜的正面和反面都存在反射损失，所以透过率为90%左右。
- 凹面的外侧棱线加工有倒角，因此，有时边缘厚度（te）会比设计值小。需要将反面的平面一侧作为标准面使用。
SigmaKoKi SLB-N系列BK7球面双凸透镜的规格参数表：
Φ5~Φ20mm BK7系列 SLB-P系列双凸球面透镜
|
无镀膜 型号 |
防反射膜的型号指定 |
外径 φD |
焦距f |
边缘厚度te |
中心厚度tc |
后焦距fb |
曲率半径r |
偏心 |
||
|
可见光 |
近红外 |
红外 |
||||||||
|
SLB-05B-06P |
M |
IR1 |
IR2 |
φ5 |
6.4 |
1.5 |
2.5 |
5.6 |
6.23 |
＜3 |
|
SLB-05B-08P |
M |
IR1 |
IR2 |
φ5 |
8.4 |
1.4 |
2.1 |
7.6 |
8.30 |
＜3 |
|
SLB-05B-10P |
M |
IR1 |
IR2 |
φ5 |
10.3 |
1.3 |
1.9 |
9.7 |
10.38 |
＜3 |
|
SLB-05B-12P |
M |
IR1 |
IR2 |
φ5 |
12.3 |
1.2 |
1.7 |
11.7 |
12.46 |
＜3 |
|
SLB-05B-15P |
M |
IR1 |
IR2 |
φ5 |
15.3 |
1.2 |
1.6 |
14.7 |
15.57 |
＜3 |
|
SLB-05B-20P |
M |
IR1 |
IR2 |
φ5 |
20.2 |
1.1 |
1.4 |
19.8 |
20.76 |
＜3 |
|
SLB-05B-25P |
M |
IR1 |
IR2 |
φ5 |
25.2 |
1.1 |
1.3 |
24.8 |
25.95 |
＜3 |
|
SLB-06B-06P |
M |
IR1 |
IR2 |
φ6 |
6.4 |
1.0 |
2.5 |
5.6 |
6.23 |
＜3 |
|
SLB-06B-08P |
M |
IR1 |
IR2 |
φ6 |
8.4 |
1.0 |
2.1 |
7.6 |
8.30 |
＜3 |
|
SLB-06B-10P |
M |
IR1 |
IR2 |
φ6 |
10.3 |
1.0 |
1.9 |
9.7 |
10.38 |
＜3 |
|
SLB-06B-12P |
M |
IR1 |
IR2 |
φ6 |
12.3 |
1.0 |
1.7 |
11.7 |
12.46 |
＜3 |
|
SLB-06B-15P |
M |
IR1 |
IR2 |
φ6 |
15.3 |
1.0 |
1.6 |
14.7 |
15.57 |
＜3 |
|
SLB-06B-20P |
M |
IR1 |
IR2 |
φ6 |
20.2 |
1.0 |
1.4 |
19.8 |
20.76 |
＜3 |
|
SLB-07B-08P |
M |
IR1 |
IR2 |
φ7 |
8.6 |
2.0 |
3.6 |
7.4 |
8.30 |
＜3 |
|
SLB-07B-10P |
M |
IR1 |
IR2 |
φ7 |
10.5 |
1.9 |
3.1 |
9.5 |
10.38 |
＜3 |
|
SLB-07B-12P |
M |
IR1 |
IR2 |
φ7 |
12.5 |
1.8 |
2.8 |
11.5 |
12.46 |
＜3 |
|
SLB-07B-15P |
M |
IR1 |
IR2 |
φ7 |
15.4 |
1.7 |
2.5 |
14.6 |
15.57 |
＜3 |
|
SLB-07B-20P |
M |
IR1 |
IR2 |
φ7 |
20.4 |
1.7 |
2.3 |
19.6 |
20.76 |
＜3 |
|
SLB-08B-08P |
M |
IR1 |
IR2 |
φ8 |
8.6 |
1.5 |
3.6 |
7.4 |
8.30 |
＜3 |
|
SLB-08B-10P |
M |
IR1 |
IR2 |
φ8 |
10.5 |
1.5 |
3.1 |
9.5 |
10.38 |
＜3 |
|
SLB-08B-12P |
M |
IR1 |
IR2 |
φ8 |
12.5 |
1.5 |
2.8 |
11.5 |
12.46 |
＜3 |
|
SLB-08B-15P |
M |
IR1 |
IR2 |
φ8 |
15.4 |
1.5 |
2.5 |
14.6 |
15.57 |
＜3 |
|
SLB-08B-20P |
M |
IR1 |
IR2 |
φ8 |
20.4 |
1.5 |
2.3 |
19.6 |
20.76 |
＜3 |
|
SLB-08B-25P |
M |
IR1 |
IR2 |
φ8 |
25.4 |
1.5 |
2.1 |
24.6 |
25.95 |
＜3 |
|
SLB-10B-10P |
M |
IR1 |
IR2 |
φ10 |
10.8 |
2.0 |
4.6 |
9.2 |
10.38 |
＜1 |
|
SLB-10B-15P |
M |
IR1 |
IR2 |
φ10 |
15.6 |
2.0 |
3.6 |
14.4 |
15.57 |
＜1 |
|
SLB-10B-20P |
M |
IR1 |
IR2 |
φ10 |
20.5 |
2.0 |
3.2 |
19.5 |
20.76 |
＜1 |
|
SLB-10B-25P |
M |
IR1 |
IR2 |
φ10 |
25.5 |
2.0 |
3.0 |
24.5 |
25.95 |
＜1 |
|
SLB-10B-30P |
M |
IR1 |
IR2 |
φ10 |
30.5 |
2.0 |
2.8 |
29.5 |
31.14 |
＜1 |
|
SLB-10B-40P |
M |
IR1 |
IR2 |
φ10 |
40.4 |
2.0 |
2.6 |
39.6 |
41.52 |
＜1 |
|
SLB-10B-50P |
M |
IR1 |
IR2 |
φ10 |
50.4 |
2.0 |
2.5 |
49.6 |
51.90 |
＜1 |
|
SLB-10B-60P |
M |
IR1 |
IR2 |
φ10 |
60.4 |
2.0 |
2.4 |
59.6 |
62.28 |
＜1 |
|
SLB-10B-70P |
M |
IR1 |
IR2 |
φ10 |
70.4 |
2.0 |
2.3 |
69.6 |
72.66 |
＜1 |
|
SLB-10B-80P |
M |
IR1 |
IR2 |
φ10 |
80.4 |
2.0 |
2.3 |
79.6 |
83.04 |
＜1 |
|
SLB-10B-90P |
M |
IR1 |
IR2 |
φ10 |
90.4 |
2.0 |
2.3 |
89.6 |
93.42 |
＜1 |
|
SLB-10B-100P |
M |
IR1 |
IR2 |
φ10 |
100.4 |
2.0 |
2.2 |
99.6 |
103.80 |
＜1 |
|
SLB-12.7B-12P |
M |
IR1 |
IR2 |
φ12.7 |
13.0 |
2.0 |
5.5 |
11.0 |
12.46 |
＜1 |
|
SLB-12.7B-20P |
M |
IR1 |
IR2 |
φ12.7 |
20.7 |
2.0 |
4.0 |
19.3 |
20.76 |
＜1 |
|
SLB-12.7B-25P |
M |
IR1 |
IR2 |
φ12.7 |
25.6 |
2.0 |
3.6 |
24.4 |
25.95 |
＜1 |
|
SLB-12.7B-30P |
M |
IR1 |
IR2 |
φ12.7 |
30.6 |
2.0 |
3.3 |
29.5 |
31.14 |
＜1 |
|
SLB-12.7B-40P |
M |
IR1 |
IR2 |
φ12.7 |
40.5 |
2.0 |
3.0 |
39.5 |
41.52 |
＜1 |
|
SLB-12.7B-50P |
M |
IR1 |
IR2 |
φ12.7 |
50.5 |
2.0 |
2.8 |
49.5 |
51.90 |
＜1 |
|
SLB-12.7B-60P |
M |
IR1 |
IR2 |
φ12.7 |
60.4 |
2.0 |
2.6 |
59.6 |
62.28 |
＜1 |
|
SLB-12.7B-70P |
M |
IR1 |
IR2 |
φ12.7 |
70.4 |
2.0 |
2.6 |
69.6 |
72.66 |
＜1 |
|
SLB-15B-15P |
M |
IR1 |
IR2 |
φ15 |
16.0 |
2.0 |
5.9 |
14.0 |
15.57 |
＜1 |
|
SLB-15B-20P |
M |
IR1 |
IR2 |
φ15 |
20.8 |
2.0 |
4.8 |
19.2 |
20.76 |
＜1 |
|
SLB-15B-25P |
M |
IR1 |
IR2 |
φ15 |
25.7 |
2.0 |
4.2 |
24.3 |
25.95 |
＜1 |
|
SLB-15B-30P |
M |
IR1 |
IR2 |
φ15 |
30.6 |
2.0 |
3.8 |
29.4 |
31.14 |
＜1 |
|
SLB-15B-40P |
M |
IR1 |
IR2 |
φ15 |
40.6 |
2.0 |
3.4 |
39.4 |
41.52 |
＜1 |
|
SLB-15B-50P |
M |
IR1 |
IR2 |
φ15 |
50.5 |
2.0 |
3.1 |
49.5 |
51.90 |
＜1 |
|
SLB-15B-60P |
M |
IR1 |
IR2 |
φ15 |
60.5 |
2.0 |
2.9 |
59.5 |
62.28 |
＜1 |
|
SLB-15B-70P |
M |
IR1 |
IR2 |
φ15 |
70.5 |
2.0 |
2.8 |
69.5 |
72.66 |
＜1 |
|
SLB-15B-80P |
M |
IR1 |
IR2 |
φ15 |
80.4 |
2.0 |
2.7 |
79.6 |
83.04 |
＜1 |
|
SLB-15B-90P |
M |
IR1 |
IR2 |
φ15 |
90.4 |
2.0 |
2.6 |
89.6 |
93.42 |
＜1 |
|
SLB-15B-100P |
M |
IR1 |
IR2 |
φ15 |
100.4 |
2.0 |
2.5 |
99.6 |
103.80 |
＜1 |
|
SLB-20B-20P |
M |
IR1 |
IR2 |
φ20 |
21.2 |
2.0 |
7.1 |
18.8 |
20.76 |
＜1 |
|
SLB-20B-25P |
M |
IR1 |
IR2 |
φ20 |
26.0 |
2.0 |
6.0 |
24.0 |
25.95 |
＜1 |
|
SLB-20B-30P |
M |
IR1 |
IR2 |
φ20 |
31.0 |
2.0 |
5.3 |
29.1 |
31.14 |
＜1 |
|
SLB-15B-40P |
M |
IR1 |
IR2 |
φ15 |
40.6 |
2.0 |
3.4 |
39.4 |
41.52 |
＜1 |
|
SLB-15B-50P |
M |
IR1 |
IR2 |
φ15 |
50.5 |
2.0 |
3.1 |
49.5 |
51.90 |
＜1 |
|
SLB-15B-60P |
M |
IR1 |
IR2 |
φ15 |
60.5 |
2.0 |
2.9 |
59.5 |
62.28 |
＜1 |
|
SLB-15B-70P |
M |
IR1 |
IR2 |
φ15 |
70.5 |
2.0 |
2.8 |
69.5 |
72.66 |
＜1 |
|
SLB-15B-80P |
M |
IR1 |
IR2 |
φ15 |
80.4 |
2.0 |
2.7 |
79.6 |
83.04 |
＜1 |
|
SLB-15B-90P |
M |
IR1 |
IR2 |
φ15 |
90.4 |
2.0 |
2.6 |
89.6 |
93.42 |
＜1 |
|
SLB-15B-100P |
M |
IR1 |
IR2 |
φ15 |
100.4 |
2.0 |
2.5 |
99.6 |
103.80 |
＜1 |
|
SLB-20B-20P |
M |
IR1 |
IR2 |
φ20 |
21.2 |
2.0 |
7.1 |
18.8 |
20.76 |
＜1 |
|
SLB-20B-25P |
M |
IR1 |
IR2 |
φ20 |
26.0 |
2.0 |
6.0 |
24.0 |
25.95 |
＜1 |
|
SLB-20B-30P |
M |
IR1 |
IR2 |
φ20 |
31.0 |
2.0 |
5.3 |
29.1 |
31.14 |
＜1 |
|
SLB-20B-40P |
M |
IR1 |
IR2 |
φ20 |
40.7 |
2.0 |
4.4 |
39.3 |
41.52 |
＜1 |
|
SLB-20B-50P |
M |
IR1 |
IR2 |
φ20 |
50.7 |
2.0 |
3.9 |
49.3 |
51.90 |
＜1 |
|
SLB-20B-60P |
M |
IR1 |
IR2 |
φ20 |
60.6 |
2.0 |
3.6 |
59.4 |
62.28 |
＜1 |
|
SLB-20B-70P |
M |
IR1 |
IR2 |
φ20 |
70.6 |
2.0 |
3.4 |
69.4 |
72.66 |
＜1 |
|
SLB-20B-80P |
M |
IR1 |
IR2 |
φ20 |
80.5 |
2.0 |
3.2 |
79.5 |
83.04 |
＜1 |
|
SLB-20B-90P |
M |
IR1 |
IR2 |
φ20 |
90.5 |
2.0 |
3.1 |
89.5 |
93.42 |
＜1 |
|
SLB-20B-100P |
M |
IR1 |
IR2 |
φ20 |
100.5 |
2.0 |
3.0 |
99.5 |
103.80 |
＜1 |
|
SLB-20B-120P |
M |
IR1 |
IR2 |
φ20 |
120.5 |
2.0 |
2.8 |
119.5 |
124.56 |
＜1 |
|
SLB-20B-150P |
M |
IR1 |
IR2 |
φ20 |
150.4 |
2.0 |
2.6 |
149.6 |
155.70 |
＜1 |
Φ25~Φ50mm BK7系列 SLB-P系列双凸球面透镜
|
无镀膜型号 |
防反射膜的型号指定 |
外径 φD |
焦距f |
边缘厚度te |
中心厚度tc |
后焦距fb |
曲率半径r |
偏心 |
||
|
可见光 |
近红外 |
红外 |
||||||||
|
SLB-25B-25P |
M |
IR1 |
IR2 |
φ25 |
26.5 |
2.0 |
8.4 |
23.5 |
25.95 |
＜1 |
|
SLB-25B-30P |
M |
IR1 |
IR2 |
φ25 |
31.2 |
2.0 |
7.2 |
28.8 |
31.14 |
＜1 |
|
SLB-25B-35P |
M |
IR1 |
IR2 |
φ25 |
36.1 |
2 |
6.4 |
33.9 |
36.33 |
＜1 |
|
SLB-25B-40P |
M |
IR1 |
IR2 |
φ25 |
41.0 |
2.0 |
5.9 |
39.0 |
41.52 |
＜1 |
|
SLB-25B-50P |
M |
IR1 |
IR2 |
φ25 |
50.8 |
2.0 |
5.1 |
49.2 |
51.90 |
＜1 |
|
SLB-25B-60P |
M |
IR1 |
IR2 |
φ25 |
60.8 |
2.0 |
4.5 |
59.2 |
62.28 |
＜1 |
|
SLB-25B-70P |
M |
IR1 |
IR2 |
φ25 |
70.7 |
2.0 |
4.1 |
69.3 |
72.66 |
＜1 |
|
SLB-25B-80P |
M |
IR1 |
IR2 |
φ25 |
80.6 |
2.0 |
3.9 |
79.4 |
83.04 |
＜1 |
|
SLB-25B-90P |
M |
IR1 |
IR2 |
φ25 |
90.6 |
2.0 |
3.7 |
89.4 |
93.42 |
＜1 |
|
SLB-25B-100P |
M |
IR1 |
IR2 |
φ25 |
100.6 |
2.0 |
3.5 |
99.4 |
103.80 |
＜1 |
|
SLB-25B-150P |
M |
IR1 |
IR2 |
φ25 |
150.5 |
2.0 |
3.0 |
149.5 |
155.70 |
＜1 |
|
SLB-25B-170P |
M |
IR1 |
IR2 |
φ25 |
170.5 |
2.0 |
2.9 |
169.5 |
176.46 |
＜1 |
|
SLB-25B-200P |
M |
IR1 |
IR2 |
φ25 |
200.5 |
2.0 |
2.8 |
199.5 |
207.60 |
＜1 |
|
SLB-25.4B-25P |
M |
IR1 |
IR2 |
φ25.4 |
26.5 |
1.8 |
8.4 |
23.6 |
25.95 |
＜1 |
|
SLB-25.4B-30P |
M |
IR1 |
IR2 |
φ25.4 |
31.2 |
1.8 |
7.2 |
28.7 |
31.14 |
＜1 |
|
SLB-25.4B-35P |
M |
IR1 |
IR2 |
φ25.4 |
36.1 |
1.8 |
6.4 |
33.9 |
36.33 |
＜1 |
|
SLB-25.4B-40P |
M |
IR1 |
IR2 |
φ25.4 |
41.0 |
1.9 |
5.9 |
39.0 |
41.52 |
＜1 |
|
SLB-25.4B-50P |
M |
IR1 |
IR2 |
φ25.4 |
50.8 |
1.9 |
5.1 |
49.2 |
51.90 |
＜1 |
|
SLB-25.4B-60P |
M |
IR1 |
IR2 |
φ25.4 |
60.8 |
1.9 |
4.5 |
59.2 |
62.28 |
＜1 |
|
SLB-25.4B-70P |
M |
IR1 |
IR2 |
φ25.4 |
70.7 |
1.9 |
4.1 |
69.3 |
72.66 |
＜1 |
|
SLB-25.4B-80P |
M |
IR1 |
IR2 |
φ25.4 |
80.6 |
1.9 |
3.9 |
79.3 |
83.04 |
＜1 |
|
SLB-25.4B-100P |
M |
IR1 |
IR2 |
φ25.4 |
100.6 |
1.9 |
3.5 |
99.4 |
103.80 |
＜1 |
|
SLB-25.4B-150P |
M |
IR1 |
IR2 |
φ25.4 |
150.5 |
2.0 |
3.0 |
149.5 |
155.70 |
＜1 |
|
SLB-25.4B-200P |
M |
IR1 |
IR2 |
φ25.4 |
200.5 |
2.0 |
2.8 |
199.6 |
207.60 |
＜1 |
|
SLB-30B-30P |
M |
IR1 |
IR2 |
φ30 |
31.7 |
2.0 |
9.7 |
28.3 |
31.14 |
＜1 |
|
SLB-30B-35P |
M |
IR1 |
IR2 |
φ30 |
36.5 |
2.0 |
8.5 |
33.5 |
36.33 |
＜1 |
|
SLB-30B-40P |
M |
IR1 |
IR2 |
φ30 |
41.3 |
2.0 |
7.6 |
38.7 |
41.52 |
＜1 |
|
SLB-30B-50P |
M |
IR1 |
IR2 |
φ30 |
51.1 |
2.0 |
6.4 |
48.9 |
51.90 |
＜1 |
|
SLB-30B-60P |
M |
IR1 |
IR2 |
φ30 |
60.9 |
2.0 |
5.7 |
59.1 |
62.28 |
＜1 |
|
SLB-30B-70P |
M |
IR1 |
IR2 |
φ30 |
70.9 |
2.0 |
5.1 |
69.1 |
72.66 |
＜1 |
|
SLB-30B-80P |
M |
IR1 |
IR2 |
φ30 |
80.8 |
2.0 |
4.7 |
79.2 |
83.04 |
＜1 |
|
SLB-30B-100P |
M |
IR1 |
IR2 |
φ30 |
100.7 |
2.0 |
4.2 |
99.3 |
103.80 |
＜1 |
|
SLB-30B-120P |
M |
IR1 |
IR2 |
φ30 |
120.6 |
2.0 |
3.8 |
119.4 |
124.56 |
＜1 |
|
SLB-30B-150P |
M |
IR1 |
IR2 |
φ30 |
150.6 |
2.0 |
3.4 |
149.4 |
155.70 |
＜1 |
|
SLB-30B-170P |
M |
IR1 |
IR2 |
φ30 |
170.5 |
2.0 |
3.3 |
169.5 |
176.46 |
＜1 |
|
SLB-30B-200P |
M |
IR1 |
IR2 |
φ30 |
200.5 |
2.0 |
3.1 |
199.5 |
207.60 |
＜1 |
|
SLB-30B-250P |
M |
IR1 |
IR2 |
φ30 |
250.5 |
2.0 |
2.9 |
249.5 |
259.50 |
＜1 |
|
SLB-40B-40P |
M |
IR1 |
IR2 |
φ40 |
42.1 |
2.0 |
12.3 |
37.9 |
41.52 |
＜1 |
|
SLB-40B-50P |
M |
IR1 |
IR2 |
φ40 |
51.7 |
2.0 |
10.0 |
48.3 |
51.90 |
＜1 |
|
SLB-40B-60P |
M |
IR1 |
IR2 |
φ40 |
61.4 |
2.0 |
8.6 |
58.6 |
62.28 |
＜1 |
|
SLB-40B-70P |
M |
IR1 |
IR2 |
φ40 |
71.3 |
2.0 |
7.6 |
68.7 |
72.66 |
＜1 |
|
SLB-40B-80P |
M |
IR1 |
IR2 |
φ40 |
81.2 |
2.0 |
6.9 |
78.8 |
83.04 |
＜1 |
|
SLB-40B-90P |
M |
IR1 |
IR2 |
φ40 |
91.1 |
2.0 |
6.3 |
88.9 |
93.42 |
＜1 |
|
SLB-40B-100P |
M |
IR1 |
IR2 |
φ40 |
101.0 |
2.0 |
5.9 |
99.0 |
103.80 |
＜1 |
|
SLB-40B-120P |
M |
IR1 |
IR2 |
φ40 |
120.9 |
2.0 |
5.2 |
119.1 |
124.56 |
＜1 |
|
SLB-40B-150P |
M |
IR1 |
IR2 |
φ40 |
150.8 |
2.0 |
4.6 |
149.2 |
155.70 |
＜1 |
|
SLB-40B-170P |
M |
IR1 |
IR2 |
φ40 |
170.7 |
2.0 |
4.3 |
169.3 |
176.46 |
＜1 |
|
SLB-40B-200P |
M |
IR1 |
IR2 |
φ40 |
200.6 |
2.0 |
3.9 |
199.4 |
207.60 |
＜1 |
|
SLB-40B-250P |
M |
IR1 |
IR2 |
φ40 |
250.6 |
2.0 |
3.5 |
249.4 |
259.50 |
＜1 |
|
SLB-50B-50P |
M |
IR1 |
IR2 |
φ50 |
52.7 |
3.0 |
15.8 |
47.3 |
51.90 |
＜1 |
|
SLB-50B-60P |
M |
IR1 |
IR2 |
φ50 |
62.3 |
3.0 |
13.5 |
57.7 |
62.28 |
＜1 |
|
SLB-50B-70P |
M |
IR1 |
IR2 |
φ50 |
72.0 |
3.0 |
11.9 |
68.0 |
72.66 |
＜1 |
|
SLB-50B-80P |
M |
IR1 |
IR2 |
φ50 |
81.8 |
3.0 |
10.7 |
78.2 |
83.04 |
＜1 |
|
SLB-50B-90P |
M |
IR1 |
IR2 |
φ50 |
91.6 |
3.0 |
9.8 |
88.4 |
93.42 |
＜1 |
|
SLB-50B-100P |
M |
IR1 |
IR2 |
φ50 |
101.5 |
3.0 |
9.1 |
98.5 |
103.80 |
＜1 |
|
SLB-50B-120P |
M |
IR1 |
IR2 |
φ50 |
121.3 |
3.0 |
8.0 |
118.7 |
124.56 |
＜1 |
|
SLB-50B-150P |
M |
IR1 |
IR2 |
φ50 |
151.2 |
3.0 |
7.0 |
148.8 |
155.70 |
＜1 |
|
SLB-50B-170P |
M |
IR1 |
IR2 |
φ50 |
171.1 |
3.0 |
6.6 |
168.9 |
176.46 |
＜1 |
|
SLB-50B-200P |
M |
IR1 |
IR2 |
φ50 |
201.0 |
3.0 |
6.0 |
199.0 |
207.60 |
＜1 |
|
SLB-50B-220P |
M |
IR1 |
IR2 |
φ50 |
220.9 |
3.0 |
5.7 |
219.1 |
228.36 |
＜1 |
|
SLB-50B-250P |
M |
IR1 |
IR2 |
φ50 |
251.0 |
3.0 |
5.4 |
249.1 |
259.50 |
＜1 |
|
SLB-50B-300P |
M |
IR1 |
IR2 |
φ50 |
300.8 |
3.0 |
5.0 |
299.2 |
311.40 |
＜1 |
|
SLB-25B-25P |
M |
IR1 |
IR2 |
φ25 |
26.5 |
2.0 |
8.4 |
23.5 |
25.95 |
＜1 |
|
SLB-25B-30P |
M |
IR1 |
IR2 |
φ25 |
31.2 |
2.0 |
7.2 |
28.8 |
31.14 |
＜1 |
|
SLB-25B-35P |
M |
IR1 |
IR2 |
φ25 |
36.1 |
2 |
6.4 |
33.9 |
36.33 |
＜1 |
|
SLB-25B-40P |
M |
IR1 |
IR2 |
φ25 |
41.0 |
2.0 |
5.9 |
39.0 |
41.52 |
＜1 |
|
SLB-25B-50P |
M |
IR1 |
IR2 |
φ25 |
50.8 |
2.0 |
5.1 |
49.2 |
51.90 |
＜1 |
|
SLB-25B-60P |
M |
IR1 |
IR2 |
φ25 |
60.8 |
2.0 |
4.5 |
59.2 |
62.28 |
＜1 |
|
SLB-25B-70P |
M |
IR1 |
IR2 |
φ25 |
70.7 |
2.0 |
4.1 |
69.3 |
72.66 |
＜1 |
|
SLB-25B-80P |
M |
IR1 |
IR2 |
φ25 |
80.6 |
2.0 |
3.9 |
79.4 |
83.04 |
＜1 |
|
SLB-25B-90P |
M |
IR1 |
IR2 |
φ25 |
90.6 |
2.0 |
3.7 |
89.4 |
93.42 |
＜1 |
|
SLB-25B-100P |
M |
IR1 |
IR2 |
φ25 |
100.6 |
2.0 |
3.5 |
99.4 |
103.80 |
＜1 |
|
SLB-25B-150P |
M |
IR1 |
IR2 |
φ25 |
150.5 |
2.0 |
3.0 |
149.5 |
155.70 |
＜1 |
|
SLB-25B-170P |
M |
IR1 |
IR2 |
φ25 |
170.5 |
2.0 |
2.9 |
169.5 |
176.46 |
＜1 |
|
SLB-25B-200P |
M |
IR1 |
IR2 |
φ25 |
200.5 |
2.0 |
2.8 |
199.5 |
207.60 |
＜1 |
|
SLB-25.4B-25P |
M |
IR1 |
IR2 |
φ25.4 |
26.5 |
1.8 |
8.4 |
23.6 |
25.95 |
＜1 |
|
SLB-25.4B-30P |
M |
IR1 |
IR2 |
φ25.4 |
31.2 |
1.8 |
7.2 |
28.7 |
31.14 |
＜1 |
Φ50.8~Φ100mm BK7系列 SLB-P球面双凸透镜
|
无镀膜型号 |
防反射膜的型号指定 |
外径 φD |
焦距f |
边缘厚度te |
中心厚度tc |
后焦距fb |
曲率半径r |
偏心 |
||
|
可见光 |
近红外 |
红外 |
||||||||
|
SLB-50.8B-50P |
M |
IR1 |
IR2 |
φ50.8 |
52.7 |
3.0 |
16.3 |
47.1 |
51.90 |
＜1 |
|
SLB-50.8B-60P |
M |
IR1 |
IR2 |
φ50.8 |
62.3 |
3.0 |
13.8 |
57.7 |
62.28 |
＜1 |
|
SLB-50.8B-70P |
M |
IR1 |
IR2 |
φ50.8 |
72.0 |
3.0 |
12.2 |
68.0 |
72.66 |
＜1 |
|
SLB-50.8B-80P |
M |
IR1 |
IR2 |
φ50.8 |
81.8 |
3.0 |
11.0 |
78.2 |
83.04 |
＜1 |
|
SLB-50.8B-90P |
M |
IR1 |
IR2 |
φ50.8 |
91.6 |
2.8 |
9.8 |
88.3 |
93.42 |
＜1 |
|
SLB-50.8B-100P |
M |
IR1 |
IR2 |
φ50.8 |
101.5 |
3.0 |
9.3 |
98.5 |
103.80 |
＜1 |
|
SLB-50.8B-120P |
M |
IR1 |
IR2 |
φ50.8 |
121.3 |
2.8 |
8.0 |
118.6 |
124.56 |
＜1 |
|
SLB-50.8B-150P |
M |
IR1 |
IR2 |
φ50.8 |
151.2 |
2.8 |
7.0 |
148.9 |
155.70 |
＜1 |
|
SLB-50.8B-170P |
M |
IR1 |
IR2 |
φ50.8 |
171.1 |
2.4 |
6.1 |
169.0 |
176.46 |
＜1 |
|
SLB-50.8B-200P |
M |
IR1 |
IR2 |
φ50.8 |
201.0 |
2.9 |
6.0 |
199.0 |
207.60 |
＜1 |
|
SLB-50.8B-250P |
M |
IR1 |
IR2 |
φ50.8 |
251.0 |
2.9 |
5.4 |
249.1 |
259.50 |
＜1 |
|
SLB-50.8B-300P |
M |
IR1 |
IR2 |
φ50.8 |
300.8 |
2.9 |
5.0 |
299.1 |
311.40 |
＜1 |
|
SLB-60B-60P |
M |
IR1 |
IR2 |
φ60 |
63.2 |
3.0 |
18.4 |
56.8 |
62.28 |
＜1 |
|
SLB-60B-70P |
M |
IR1 |
IR2 |
φ60 |
72.7 |
3.0 |
16.0 |
67.3 |
72.66 |
＜1 |
|
SLB-60B-80P |
M |
IR1 |
IR2 |
φ60 |
82.4 |
3.0 |
14.2 |
77.6 |
83.04 |
＜1 |
|
SLB-60B-90P |
M |
IR1 |
IR2 |
φ60 |
92.2 |
3.0 |
13.0 |
87.8 |
93.42 |
＜1 |
|
SLB-60B-100P |
M |
IR1 |
IR2 |
φ60 |
102.0 |
3.0 |
11.9 |
98.0 |
103.80 |
＜1 |
|
SLB-60B-120P |
M |
IR1 |
IR2 |
φ60 |
121.7 |
3.0 |
10.3 |
118.3 |
124.56 |
＜1 |
|
SLB-60B-150P |
M |
IR1 |
IR2 |
φ60 |
151.5 |
3.0 |
8.8 |
148.5 |
155.70 |
＜1 |
|
SLB-60B-170P |
M |
IR1 |
IR2 |
φ60 |
171.4 |
3.0 |
8.1 |
168.7 |
176.46 |
＜1 |
|
SLB-60B-200P |
M |
IR1 |
IR2 |
φ60 |
201.2 |
3.0 |
7.4 |
198.8 |
207.60 |
＜1 |
|
SLB-60B-250P |
M |
IR1 |
IR2 |
φ60 |
251.1 |
3.0 |
6.5 |
248.9 |
259.50 |
＜1 |
|
SLB-60B-300P |
M |
IR1 |
IR2 |
φ60 |
301.0 |
3.0 |
5.9 |
299.0 |
311.40 |
＜1 |
|
SLB-80B-100P |
M |
IR1 |
IR2 |
φ80 |
103.2 |
3.0 |
19.0 |
96.8 |
103.80 |
＜1 |
|
SLB-80B-150P |
M |
IR1 |
IR2 |
φ80 |
152.2 |
3.0 |
13.5 |
147.8 |
155.70 |
＜1 |
|
SLB-80B-200P |
M |
IR1 |
IR2 |
φ80 |
201.8 |
3.0 |
10.8 |
198.2 |
207.60 |
＜1 |
|
SLB-80B-250P |
M |
IR1 |
IR2 |
φ80 |
251.5 |
3.0 |
9.2 |
248.5 |
259.50 |
＜1 |
|
SLB-80B-300P |
M |
IR1 |
IR2 |
φ80 |
301.3 |
3.0 |
8.2 |
298.7 |
311.40 |
＜1 |
|
SLB-80B-400P |
M |
IR1 |
IR2 |
φ80 |
401.1 |
3.0 |
6.9 |
398.9 |
415.20 |
＜1 |
|
SLB-80B-500P |
M |
IR1 |
IR2 |
φ80 |
501.0 |
3.0 |
6.1 |
499.0 |
519.00 |
＜1 |
|
SLB-80B-700P |
M |
IR1 |
IR2 |
φ80 |
700.9 |
3.0 |
5.2 |
699.1 |
726.60 |
＜1 |
|
SLB-80B-1000P |
M |
IR1 |
IR2 |
φ80 |
1000.7 |
3.0 |
4.5 |
999.3 |
1038.00 |
＜1 |
|
SLB-100B-150P |
M |
IR1 |
IR2 |
φ100 |
153.3 |
3.0 |
19.5 |
146.7 |
155.70 |
＜1 |
|
SLB-100B-200P |
M |
IR1 |
IR2 |
φ100 |
202.5 |
3.0 |
15.2 |
197.5 |
207.60 |
＜1 |
|
SLB-100B-250P |
M |
IR1 |
IR2 |
φ100 |
252.1 |
3.0 |
12.7 |
247.9 |
259.50 |
＜1 |
|
SLB-100B-300P |
M |
IR1 |
IR2 |
φ100 |
301.8 |
3.0 |
11.1 |
298.2 |
311.40 |
＜1 |
|
SLB-100B-400P |
M |
IR1 |
IR2 |
φ100 |
401.5 |
3.0 |
9.0 |
398.5 |
415.20 |
＜1 |
|
SLB-100B-500P |
M |
IR1 |
IR2 |
φ100 |
501.3 |
3.0 |
7.8 |
498.7 |
519.00 |
＜1 |
|
SLB-100B-700P |
M |
IR1 |
IR2 |
φ100 |
701.1 |
3.0 |
6.4 |
698.9 |
726.60 |
＜1 |
|
SLB-100B-1000P |
M |
IR1 |
IR2 |
φ100 |
1001.0 |
3.0 |
5.4 |
999.1 |
1038.00 |
＜1 |
|
SLB-50.8B-50P |
M |
IR1 |
IR2 |
φ50.8 |
52.7 |
3.0 |
16.3 |
47.1 |
51.90 |
＜1 |
|
SLB-50.8B-60P |
M |
IR1 |
IR2 |
φ50.8 |
62.3 |
3.0 |
13.8 |
57.7 |
62.28 |
＜1 |
|
SLB-50.8B-70P |
M |
IR1 |
IR2 |
φ50.8 |
72.0 |
3.0 |
12.2 |
68.0 |
72.66 |
＜1 |
|
SLB-50.8B-80P |
M |
IR1 |
IR2 |
φ50.8 |
81.8 |
3.0 |
11.0 |
78.2 |
83.04 |
＜1 |
|
SLB-50.8B-90P |
M |
IR1 |
IR2 |
φ50.8 |
91.6 |
2.8 |
9.8 |
88.3 |
93.42 |
＜1 |
|
SLB-50.8B-100P |
M |
IR1 |
IR2 |
φ50.8 |
101.5 |
3.0 |
9.3 |
98.5 |
103.80 |
＜1 |
|
SLB-50.8B-120P |
M |
IR1 |
IR2 |
φ50.8 |
121.3 |
2.8 |
8.0 |
118.6 |
124.56 |
＜1 |
|
SLB-50.8B-150P |
M |
IR1 |
IR2 |
φ50.8 |
151.2 |
2.8 |
7.0 |
148.9 |
155.70 |
＜1 |
|
SLB-50.8B-170P |
M |
IR1 |
IR2 |
φ50.8 |
171.1 |
2.4 |
6.1 |
169.0 |
176.46 |
＜1 |
|
SLB-50.8B-200P |
M |
IR1 |
IR2 |
φ50.8 |
201.0 |
2.9 |
6.0 |
199.0 |
207.60 |
＜1 |
|
SLB-50.8B-250P |
M |
IR1 |
IR2 |
φ50.8 |
251.0 |
2.9 |
5.4 |
249.1 |
259.50 |
＜1 |
|
SLB-50.8B-300P |
M |
IR1 |
IR2 |
φ50.8 |
300.8 |
2.9 |
5.0 |
299.1 |
311.40 |
＜1 |
|
SLB-60B-60P |
M |
IR1 |
IR2 |
φ60 |
63.2 |
3.0 |
18.4 |
56.8 |
62.28 |
＜1 |
|
SLB-60B-70P |
M |
IR1 |
IR2 |
φ60 |
72.7 |
3.0 |
16.0 |
67.3 |
72.66 |
＜1 |
|
SLB-60B-80P |
M |
IR1 |
IR2 |
φ60 |
82.4 |
3.0 |
14.2 |
77.6 |
83.04 |
＜1 |
|
SLB-60B-90P |
M |
IR1 |
IR2 |
φ60 |
92.2 |
3.0 |
13.0 |
87.8 |
93.42 |
＜1 |
|
SLB-60B-100P |
M |
IR1 |
IR2 |
φ60 |
102.0 |
3.0 |
11.9 |
98.0 |
103.80 |
＜1 |
|
SLB-60B-120P |
M |
IR1 |
IR2 |
φ60 |
121.7 |
3.0 |
10.3 |
118.3 |
124.56 |
＜1 |
|
SLB-60B-150P |
M |
IR1 |
IR2 |
φ60 |
151.5 |
3.0 |
8.8 |
148.5 |
155.70 |
＜1 |
|
SLB-60B-170P |
M |
IR1 |
IR2 |
φ60 |
171.4 |
3.0 |
8.1 |
168.7 |
176.46 |
＜1 |
|
SLB-60B-200P |
M |
IR1 |
IR2 |
φ60 |
201.2 |
3.0 |
7.4 |
198.8 |
207.60 |
＜1 |
|
SLB-60B-250P |
M |
IR1 |
IR2 |
φ60 |
251.1 |
3.0 |
6.5 |
248.9 |
259.50 |
＜1 |
|
SLB-60B-300P |
M |
IR1 |
IR2 |
φ60 |
301.0 |
3.0 |
5.9 |
299.0 |
311.40 |
＜1 |
|
SLB-80B-100P |
M |
IR1 |
IR2 |
φ80 |
103.2 |
3.0 |
19.0 |
96.8 |
103.80 |
＜1 |
|
SLB-80B-150P |
M |
IR1 |
IR2 |
φ80 |
152.2 |
3.0 |
13.5 |
147.8 |
155.70 |
＜1 |
|
SLB-80B-200P |
M |
IR1 |
IR2 |
φ80 |
201.8 |
3.0 |
10.8 |
198.2 |
207.60 |
＜1 |
|
SLB-80B-250P |
M |
IR1 |
IR2 |
φ80 |
251.5 |
3.0 |
9.2 |
248.5 |
259.50 |
＜1 |
|
SLB-80B-300P |
M |
IR1 |
IR2 |
φ80 |
301.3 |
3.0 |
8.2 |
298.7 |
311.40 |
＜1 |
|
SLB-80B-400P |
M |
IR1 |
IR2 |
φ80 |
401.1 |
3.0 |
6.9 |
398.9 |
415.20 |
＜1 |
|
SLB-80B-500P |
M |
IR1 |
IR2 |
φ80 |
501.0 |
3.0 |
6.1 |
499.0 |
519.00 |
＜1 |
|
SLB-80B-700P |
M |
IR1 |
IR2 |
φ80 |
700.9 |
3.0 |
5.2 |
699.1 |
726.60 |
＜1 |
|
SLB-80B-1000P |
M |
IR1 |
IR2 |
φ80 |
1000.7 |
3.0 |
4.5 |
999.3 |
1038.00 |
＜1 |
|
SLB-100B-150P |
M |
IR1 |
IR2 |
φ100 |
153.3 |
3.0 |
19.5 |
146.7 |
155.70 |
＜1 |
|
SLB-100B-200P |
M |
IR1 |
IR2 |
φ100 |
202.5 |
3.0 |
15.2 |
197.5 |
207.60 |
＜1 |
|
SLB-100B-250P |
M |
IR1 |
IR2 |
φ100 |
252.1 |
3.0 |
12.7 |
247.9 |
259.50 |
＜1 |
|
SLB-100B-300P |
M |
IR1 |
IR2 |
φ100 |
301.8 |
3.0 |
11.1 |
298.2 |
311.40 |
＜1 |
|
SLB-100B-400P |
M |
IR1 |
IR2 |
φ100 |
401.5 |
3.0 |
9.0 |
398.5 |
415.20 |
＜1 |
200/308/400消色差透镜
紫外消色差聚焦透镜是NA为0.1以下的透镜，对准直激光成像后的焦点光斑直径几乎接近衍射极限。没有使用吸收紫外光的玻璃或粘接剂，具有良好的耐光性。
查看详细
可见光气隙消色差聚焦双合透镜
可见光气隙消色差聚焦透镜不使用胶合透镜，而使用空气隙型消色差的聚光透镜。可以嵌入激光加工机械中，使用机内的532nm高输出激光进行同轴照明，作为聚光透镜使用。通过光学优化设计，校正了以532nm为中心的宽带范围内色差。
查看详细
ETL/EDL/NEDL准分子激光空气隙透镜
准分子激光空气隙透镜是在紫外光谱区域有高透过率的合成石英透镜构成的紫外激光用聚光透镜。没有使用吸收紫外光的玻璃或粘着剂，所以耐光性很好。248nm透镜由2枚或3枚球面透镜的组成，校正了球差和慧差。
查看详细
西格玛光机非球面平凸透镜
把平凸透镜的凸面改成非球面形状，可制作球差小的短焦距透镜，也就是OptoSigma非球面平凸透镜。西格玛光机非球面平凸透镜常被用于汇聚照明光，或准直点光源。
查看详细
