HCP（HC Photonics）所生产的PPLN晶体PPLN波导芯片具有优秀的品质，并且有许多标准品供您挑选，可以快速供货。PPLN波导芯片型号从可见光至中红外波段均有标准品，本文将罗列PPLN晶体型号中不同的QPM准相位匹配结构中的Single grating单周期，Multiple gratings多周期和Fan-out gratings扇形结构的所有PPLN波导芯片型号，方便您根据需求进行型号的选择，我们亦可以根据您的需求进行定制。

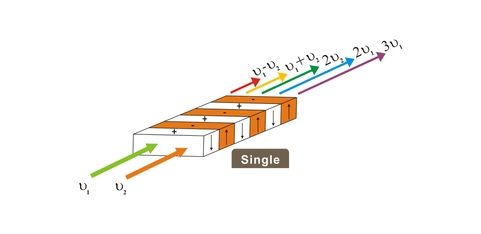

Single grating单周期：
应用：SHG和OPO
镀膜：AR coated
长度（X）：10，25和50 mm
厚度（Z）：0.3，0.5，1.0，2.0和3.0mm
可根据要求定制HCP PPLN晶体
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Length (mm) |
crossection (mm2) |
|
|
SHVIS |
SH |
910 |
455 |
4.17 |
10/25 |
2.0x0.3 |
|
SI |
915 |
457.5 |
4.24 |
|||
|
SD |
920 |
460 |
4.31 |
|||
|
SJ |
925 |
462.5 |
4.40 |
|||
|
SE |
930 |
465 |
4.49 |
|||
|
SK |
935 |
467.5 |
4.56 |
|||
|
SF |
940 |
470 |
4.63 |
|||
|
SL |
950 |
475 |
4.81 |
|||
|
SG |
960 |
480 |
4.99 |
10/25/50 |
2.0x0.5 |
|
|
SA |
976 |
488 |
5.28 |
|||
|
SB |
1064 |
532 |
6.92 |
|||
|
SC |
1122 |
561 |
8.15 |
|||
|
SHNIR |
SB |
1550(type2) |
775 |
9.02 |
10/25/50 |
2.0x1.0 |
|
SC |
1560(type2) |
780 |
9.12 |
|||
|
SA |
1550 |
775 |
19.36 |
|||
|
OPMIR |
SA |
1064 |
1395-1415/4300-4500 |
27.50 |
10/25/50 |
2.0x2.0 |
|
SE |
1428~1453/3975~4175 |
28.46 |
2.0x2.0 |
|||
|
SB |
1450-1485/3750-4000 |
29.00 |
3.0x3.0 |
|||
|
SF |
1525~1590/3220-3520 |
30.30 |
3.0x3.0 |
|||
|
SC |
1600-1850/2500-3100 |
31.30 |
3.0x3.0 |
|||
|
SD |
1950-2128/2128-2400 |
32.25 |
3.0x3.0 |
|||

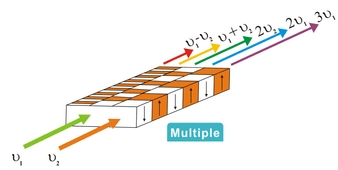

Multiple gratings多周期：
应用：SHG，SFG，DFG和OPO
镀膜：AR coated
长度（X）：0.3，0.5，1.0，10，25和50 mm
厚度（Z）：0.5和1.0mm
可根据要求定制HCP PPLN晶体
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Length (mm) |
crossection (mm2) |
|
|
SHVIS |
MA |
970-994 |
485-497 |
5.17, 5.20, 5.23, 5.26, 5.29, 5.32 |
10/25/50 |
7.9x0.5 |
|
MG |
990-1005 |
495-502.5 |
5.51, 5.55, 5.59, 5.63, 5.67, 5.71 |
|||
|
MH |
1005-1020 |
502.5-510 |
5.80, 5.84, 5.88, 5.92, 5.96, 6.00 |
|||
|
MB |
1020-1040 |
510-520 |
6.13, 6.16, 6.19, 6.23, 6.26, 6.29 |
|||
|
MK MC ML |
1030-1050 1040-1070 1050-1070 |
515-525 520-535 525-535 |
6.28, 6.32, 6.36, 6.40, 6.44, 6.48 6.45, 6.51, 6.57, 6.63, 6.69, 6.75 6.67, 6.70, 6.73, 6.76, 6.79, 6.82 |
|||
|
MD |
1060-1085 |
529-542 |
6.83, 6.86, 6.90, 6.93, 6.96, 7.00 |
|||
|
MI |
1080-1100 |
540-550 |
7.28, 7.34, 7.40, 7.46, 7.52, 7.58 |
|||
|
MJ |
1100-1120 |
550-560 |
7.70, 7.76, 7.82, 7.88, 7.94, 8.00 |
|||
|
ME |
1120-1150 |
560-575 |
8.15, 8.25, 8.35, 8.45, 8.55, 8.65 |
|||
|
MF |
1150-1180 |
575-590 |
8.90, 9.01, 9.12, 9.23, 9.34, 9.45 |
|||
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Poled Length (*Actual mm) |
Crossection (mm2) |
walk-off (ps/mm) |
|
|
FSHVIS |
MA |
970-994 |
485-497 |
5.17, 5.20, 5.23 5.26, 5.29, 5.32 |
0.3/0.5/10.3/0.5* (1mm) |
9.6x0.5 |
0.6-0.9 |
|
MA-C |
|||||||
|
MG |
990-1005 |
495-502.5 |
5.51, 5.55, 5.59 5.63, 5.67, 5.71 |
0.3/0.5/10.3/0.5* (1mm) |
9.6x0.5 |
0.6-0.9 |
|
|
MG-C |
|||||||
|
MH |
1005-1025 |
502.5-512.5 |
5.80, 5.84, 5.88 5.92, 5.96, 6.00 |
0.3/0.5/10.3/0.5* (1mm) |
9.6x0.5 |
0.6-0.9 |
|
|
MH-C |
|||||||
|
MB |
1020-1040 |
510-520 |
6.13, 6.16, 6.19 6.23, 6.26, 6.29 |
0.3/0.5/10.3/0.5* (1mm) |
9.6x0.5 |
0.6-0.9 |
|
|
MB-C |
|||||||
|
MC |
1040-1070 |
520-535 |
6.45, 6.51, 6.57 6.63, 6.69, 6.75 |
0.3/0.5/10.3/0.5*(1mm) |
9.6x0.5 |
0.6-0.9 |
|
|
MC-C |
|||||||
|
MD |
1060-1085 |
529-542 |
6.83, 6.86, 6.90 6.93, 6.96, 7.00 |
0.3/0.5/10.3/0.5* (1mm) |
9.6x0.5 |
0.6-0.9 |
|
|
MD-C |
|||||||
|
MI |
1080-1100 |
540-550 |
7.28, 7.34, 7.40 7.46, 7.52, 7.58 |
0.3/0.5/10.3/0.5* (1mm) |
9.6x0.5 |
0.6-0.9 |
|
|
MI-C |
|||||||
|
MJ |
1100-1120 |
550-560 |
7.70, 7.76, 7.82 7.88, 7.94, 8.00 |
0.3/0.5/10.3/0.5* (1mm) |
9.6x0.5 |
0.6-0.9 |
|
|
MJ-C |
|||||||
|
ME |
1120-1150 |
560-575 |
8.15, 8.25, 8.35 8.45, 8.55, 8.65 |
0.3/0.5/10.3/0.5* (1mm) |
9.6x0.5 |
0.6-0.9 |
|
|
ME-C |
|||||||
|
MF |
1150-1180 |
575-590 |
8.90, 9.01, 9.12 9.23, 9.34, 9.45 |
0.3/0.5/10.3/0.5* (1mm) |
9.6x0.5 |
0.6-0.9 |
|
|
MF-C |
|||||||
|
YT |
1030 |
515 |
6.30 |
0.1~1.0* |
14.0x0.5 |
0.08-0.8 |
|
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Length (mm) |
crossection (mm2) |
|
|
SHRED |
MF |
1175-1210 |
587.5-605 |
9.38, 9.52, 9.66, 9.80, 9.94, 10.08 |
10/25/50 |
7.9x0.5 |
|
MA |
1200-1250 |
600-625 |
9.70, 9.97, 10.24, 10.51, 10.78, 11.05 |
|||
|
MB |
1250-1300 |
625-650 |
11.25, 11.49, 11.73, 11.97, 12.21, 12.45 |
7.9x1.0 |
||
|
MC |
1300-1350 |
645-675 |
12.35, 12.59, 12.83, 13.07 13.31, 13.55 |
|||
|
MD ME |
1350-1430 1430-1510 |
675-715 715-755 |
13.80, 14.20, 14.60, 15.00, 15.40, 15.80 16.00, 16.40, 16.80, 17.20, 17.60, 18.00 |
|||
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Poled Length (*Actual mm) |
Crossection (mm2) |
walk-off (ps/mm) |
|
|
FSHRED |
MF |
1175-1210 |
587.5-605 |
9.38, 9.52, 9.66 9.80, 9.94, 10.08 |
0.3/0.5/1 0.3/0.5* (1mm) |
9.6x0.5 |
0.4-0.6 |
|
MF-C |
|||||||
|
MA |
1200-1250 |
600-625 |
9.70,9.97, 10.24 10.51, 10.78,11.05 |
0.3/0.5/1 0.3/0.5* (1mm) |
9.6x0.5 |
0.4-0.6 |
|
|
MA-C |
|||||||
|
MB |
1250-1300 |
625-650 |
11.25, 11.49, 11.73 11.97,12.21.12.45 |
0.3/0.5/1 0.3/0.5* (1mm) |
9.6x1.0 |
0.4-0.6 |
|
|
MB-C |
|||||||
|
MC |
1290-1350 |
645-675 |
12.35, 12.59, 12.83 13.07, 13.31, 13.55 |
0.3/0.5/1 0.3/0.5* (1mm) |
9.6x1.0 |
0.4-0.6 |
|
|
MC-C |
|||||||
|
MD |
1350-1430 |
675-715 |
13.80, 14.20, 14.60 15.00, 15.40, 15.80 |
0.3/0.5/1 0.3/0.5* (1mm) |
9.6x1.0 |
0.4-0.6 |
|
|
MD-C |
|||||||
|
ME |
1430-1510 |
715-755 |
16.00, 16.40, 16.80 17.20, 17.60, 18.00 |
0.3/0.5/1 0.3/0.5* (1mm) |
9.6x1.0 |
0.4-0.6 |
|
|
ME-C |
|||||||
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Length (mm) |
crossection (mm2) |
|
|
SHNIR |
MA |
1500-1620 |
750-810 |
18.20, 18.50, 18.80, 19.10, 19.40 19.70, 20.00, 20.30, 20.60, 20.90 |
10/25/50 |
12.3x1.0 |
|
MF |
1520-1600 |
760-800 |
18.45, 18.65, 18.85, 19.05, 19.25 19.45, 19.65, 19.85, 20.05, 20.25 |
|||
|
MD |
1600-1710 |
800-855 |
20.60, 20.90, 21.20, 21.50, 21.80 22.10, 22.40, 22.70, 23.00, 23.30 |
|||
|
ME |
1710-1990 |
855-995 |
23.50, 24.20, 24.90, 25.60, 26.30 27.00, 27.70, 28.40, 29.10, 29.80 |
|||
|
MB |
1925-2300 |
962.5-1150 |
28.40, 29.00, 29.60, 30.20, 30.80 31.40, 32.00, 32.60, 33.20, 33.60 |
|||
|
MC |
2400-3400 |
1200-1700 |
33.30, 33.60, 33.90, 34.20, 34.50 34.80, 35.10, 35.40, 35.70, 36.00 |
|||
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Poled Length (*Actual mm) |
Crossection (mm2) |
walk-off (ps/mm) |
|
|
FSHNIR |
MA |
1500-1620 |
780-810 |
18.20, 18.50, 18.80, 19.10, 19.40 19.70, 20.00, 20.30, 20.60, 20.90 |
0.3/0.5/1 0.3/0.5* (1mm) |
14.0x1.0 |
~0.3 |
|
MA-C |
|||||||
|
MD |
1600-1710 |
800-855 |
20.60, 20.90, 21.20, 21.50, 21.80 22.10, 22.40, 22.70, 23.00, 23.30 |
0.3/0.5/1 0.3/0.5* (1mm) |
14.0x1.0 |
|
|
|
MD-C |
|||||||
|
ME |
1710-1990 |
855-995 |
23.50, 24.20, 24.90, 25.60, 26.30 27.00, 27.70, 28.40, 29.10, 29.80 |
0.3/0.5/1 0.3/0.5* (1mm) |
14.0x1.0 |
|
|
|
ME-C |
|||||||
|
MB |
1925-2300 |
962.5-1150 |
28.40, 29.00, 29.60, 30.20, 30.80 31.40, 32.00, 32.60, 33.20, 33.60 |
0.3/0.5/1 0.3/0.5* (1mm) |
14.0x1.0 |
~0.1 |
|
|
MB-C |
|||||||
|
MC |
2440-3400 |
1200-1700 |
33.30, 33.60, 33.90, 34.20, 34.50 34.80, 35.10, 35.40, 35.70, 36.00 |
0.3/0.5/1 0.3/0.5*(1mm) |
14.0x1.0 |
~0.05-0.1 |
|
|
MC-C |
|||||||
|
ER2 |
1550 |
775 |
19.36, 19.36, 19.36, 19 36, 19.36 19.36, 19.36, 19.36, 19 36, 19.36 |
0.1~1* (1mm) |
14.0x1.0 |
0.03~0.3 |
|
|
ER |
1560 |
780 |
19.65, 19.65, 19.65, 19.65, 19.65 19.65, 19.65, 19.65, 19.65, 19.65 |
||||
|
TM2 |
1840 |
920 |
26.90, 26.90, 26.90, 26.90, 26.90 26.90, 26.90, 26.90, 26.90, 26.90 |
0.1~1* (1mm) |
14.0x1.0 |
0.02~0.2 |
|
|
TM |
1950 |
975 |
29.30, 29.30, 29.30, 29.30, 29.30 29.30, 29.30, 29.30, 29.30, 29.30 |
||||
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Length (mm) |
crossection (mm2) |
|
|
SFVIS |
MA |
775-845/1550 |
516-544 |
6.90, 7.10, 7.30, 7.50, 7.70, 8.10 |
10/25/50 |
7.9x0.5 |
|
MD |
1300-1400/1030 |
575-594 |
8.90, 9.01, 9.12, 9.23,9.34, 9.45 |
7.9x0.5 |
||
|
MF |
1350-1460/1030 |
584-604 |
9.38, 9.52, 9.66, 9.80, 9.94, 10.08 |
7.9x0.5 |
||
|
MG |
1390-1560/1030 |
591-621 |
9.70, 9.97, 10.24, 10.51, 10.78, 11.05 |
7.9x0.5 |
||
|
MB |
1520-1620/1064 |
625-642 |
11.25, 11.49, 11.73, 11.97, 12.21, 12.45 |
7.9x1.0 |
||
|
ME |
1510-1650/1122 |
644-668 |
12.35, 12.59, 12 83, 13.07, 13.31, 13.55 |
7.9x1.0 |
||
|
MC |
1900-2400/1064 |
682-737 |
14.90, 15.30, 15.70, 16.10, 16.50 16.90, 17.30, 17.70, 18.10, 18.50 |
12.3x1.0 |
||
|
12.3x1.0 |
||||||
|
MH |
2400-3000/1064 |
737-785 |
18.20, 18.50, 18.80, 19.10, 19.40 19.70, 20.00, 20.30, 20.60, 20.90 |
12.3x1.0 |
||
|
12.3x1.0 |
||||||
|
MI |
2800-4500/1064 |
771-860 |
20.60, 20.90, 21.20, 21.50, 21.80 22.10, 22.40, 22.70, 23.00, 23.30 |
12.3x1.0 |
||
|
12.3x1.0 |
||||||
|
MJ |
1900-2850/1550 |
850-1000 |
23.50, 24.20, 24.90, 25.60, 26.30 27.00, 27.70, 28.40, 29.10, 29.80 |
12.3x1.0 |
||
|
12.3x1.0 |
||||||
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Poled Length (*Actual mm) |
Crossection (mm2) |
|
|
FSFVIS |
MA |
775-845/1550 |
516-544 |
6.90, 7.10, 7.30, 7.50, 7.70, 8.10 |
0.3/0.5/1 0.3/0.5* (1mm) |
9.6x0.5 |
|
MA-C |
||||||
|
MD |
1300-1400/1030 |
575-594 |
8.90, 9.01, 9.12, 9.23, 9.34, 9.45 |
0.3/0.5/1 0.3/0.5* (1mm) |
9.6x0.5 |
|
|
MD-C |
||||||
|
MF |
1350-1460/1030 |
584-604 |
9.38, 9.52, 9.66, 9.80, 9.94, 10.08 |
0.3/0.5/1 0.3/0.5* (1mm) |
9.6x0.5 |
|
|
MF-C |
||||||
|
MG |
1390-1560/1030 |
591-621 |
9.70, 9.97, 10.24 10.51, 10.78, 11.05 |
0.3/0.5/1 0.3/0.5* (1mm) |
9.6x0.5 |
|
|
MG-C |
||||||
|
MB |
1520-1620/1064 |
625-642 |
11 25, 11.49, 1173 11.97, 12.21, 12.45 |
0.3/0.5/1 0.3/0.5*(1mm) |
9.6x1.0 |
|
|
MB-C |
||||||
|
ME |
1510-1650/1122 |
644-668 |
12.35, 12.59, 12 83 13.07, 13.31, 13.55 |
0.3/0.5/1 0.3/0.5*(1mm) |
9.6x1.0 |
|
|
ME-C |
||||||
|
MC |
1900-2400/1064 |
682-737 |
14.90, 15.30, 15.70, 16.10, 16.50 16.90, 17.30. 17.70, 18.10, 18.50 |
0.3/0.5/1 0.3/0.5*(1mm) |
14.0x1.0 |
|
|
MC-C |
||||||
|
MH |
2400-3000/1064 |
737-785 |
18.20, 18.50, 18.80, 19.10, 19.40 19.70, 20.00, 20.30, 20.60, 20.90 |
0.3/0.5/1 0.3/0.5*(1mm) |
14.0x1.0 |
|
|
MH-C |
||||||
|
MI |
2800-4500/1064 |
771-860 |
20.60, 20.90, 21.20, 21.50, 21.80 22.10, 22.40, 22.70, 23.00, 23.30 |
0.3/0.5/1 0.3/0.5*(1mm) |
14.0x1.0 |
|
|
MI-C |
||||||
|
MJ |
1900-2850/1550 |
850-1000 |
23.50, 24.20, 24.90, 25.60, 26.30 27.00, 27.70, 28.40, 29.10, 29.80 |
0.3/0.5/1 0.3/0.5*(1mm) |
14.0x1.0 |
|
|
MJ-C |
||||||
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Length (mm) |
crossection (mm2) |
|
|
DFMIR |
MA |
735~786/1064 |
2377-3008 |
18.20, 18.50, 18.80, 19.10, 19.40 19.70, 20.00, 20.30, 20.60, 20.90 |
10/25/50 |
12.3x1.0 |
|
MB |
775~870/1064 |
2853-4771 |
20.60, 20.90, 21.20, 21.50, 21.80 22.10, 22.40, 22.70, 23.00, 23.30 |
|||
|
MC |
850-1000/1550 |
1882-2818 |
23.50, 24.20, 24.90, 25.60, 26.30 27.00, 27.70, 28.40, 29.10, 29.80 |
|||
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Length (mm) |
crossection (mm2) |
|
|
OPMIR |
MA |
1064 |
1400-2128/2128-4433 |
27.58, 27.91, 28.28, 28.67, 29.08 29.52, 29.98, 30.49, 31.02, 31.59 |
10/25/50 |
12.3x1.0 |
|
FOPMIR |
MA |
1064 |
1400-2128/2128-4433 |
27.58, 27.91, 28.28, 28.67, 29.08 29.52, 29.98, 30.49, 31.02, 31.59 |
0.3/0.5/1 0.3/0.5*(1mm) |
14.0x1.0 |
|
MA-C |
||||||

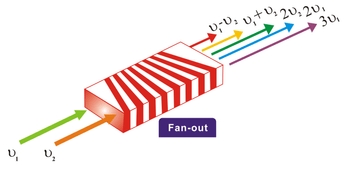

Fan-out gratings扇形：
应用：SHG，SFG，DFG和OPO
镀膜：AR coated
长度（X）：0.3，0.5，1.0，10，25和50 mm
厚度（Z）：0.5和1.0mm
可根据要求定制HC PhotonicsPPLN晶体
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Length (mm) |
crossection (mm2) |
|
|
SHVIS |
FA |
1120-1150 |
560-575 |
8.10-8.90 |
10/25 |
12.3x0.5 |
|
FB |
1150-1190 |
575-595 |
8.85-9.75 |
|||
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Length (mm) |
crossection (mm2) |
|
|
SHRED |
FA |
1200-1244 |
595-622 |
9.70-11.05 |
10/25 |
12.3x0.5 |
|
FB |
1244-1300 |
622-650 |
11.00-12.55 |
|||
|
FC |
1300-1360 |
650-680 |
12.50-13.85 |
|||
|
FD |
1350-1450 |
675-725 |
13.80-16.00 |
|||
|
FE |
1430-1510 |
715-755 |
15.90-18.10 |
|||
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Length (mm) |
crossection (mm2) |
|
|
SHNIR |
FA |
1500-1620 |
750-810 |
18.00-21.00 |
10/25 |
12.3x1.0 |
|
FD |
1600-1710 |
800-855 |
20.50-23.50 |
|||
|
FE |
1710-1925 |
855-962.5 |
23.40-28.50 |
|||
|
FB |
1925-2300 |
962.5-1150 |
28.40-33.60 |
|||
|
FC |
2400-3400 |
1200-1700 |
33.30-36.00 |
|||
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Poled Length (*Actual mm) |
Crossection (mm2) |
walk-off (ps/mm) |
|
|
FSHNIR |
FA |
1500-1620 |
750-810 |
18.0-21.0 |
0.3/0.5/1 |
14.0x1.0 |
0.3 |
|
FB |
1925-2300 |
962.5-1150 |
28.0-33.6 |
0.3/0.5/1 |
14.0x1.0 |
0.07~0.15 |
|
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Length (mm) |
crossection (mm2) |
|
|
SFVIS |
FA |
775-845/1550 |
516-544 |
6.90-8.10 |
10/25 |
12.3x0.5 |
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Length (mm) |
crossection (mm2) |
|
|
DFMIR |
FA |
775-870/1064 |
2853-4771 |
20.50-23.50 |
10/25 |
12.3x1.0 |
|
Series# |
Input (nm) |
Output (nm) |
QPM period (um) |
Length (mm) |
Crossection (mm2) |
walk-off (ps/mm) |
|
|
OPMIR |
FA |
1064 |
1400-2128/2128-4433 |
27.50-31.60 |
10/25 |
12.3x1.0 |
|
|
FOPMIR |
FA |
800 |
1150-1500/1714-2628 |
20.50-23.50 |
0.3/0.5/1 |
14.0x1.0 |
0.25 |
|
FB |
1064 |
1400-2128/2128-4433 |
27.50-31.60 |
0.3/0.5/1 |
14.0x1.0 |
~0.12/0.2 |
|
以上就是HC PhotonicsPPLN晶体型号中不同的QPM准相位匹配结构中的Single grating单周期，Multiple gratings多周期和Fan-out gratings扇形结构的所有PPLN波导芯片型号。如果您有其他QPM准相位匹配结构需求，欢迎联系我们。
